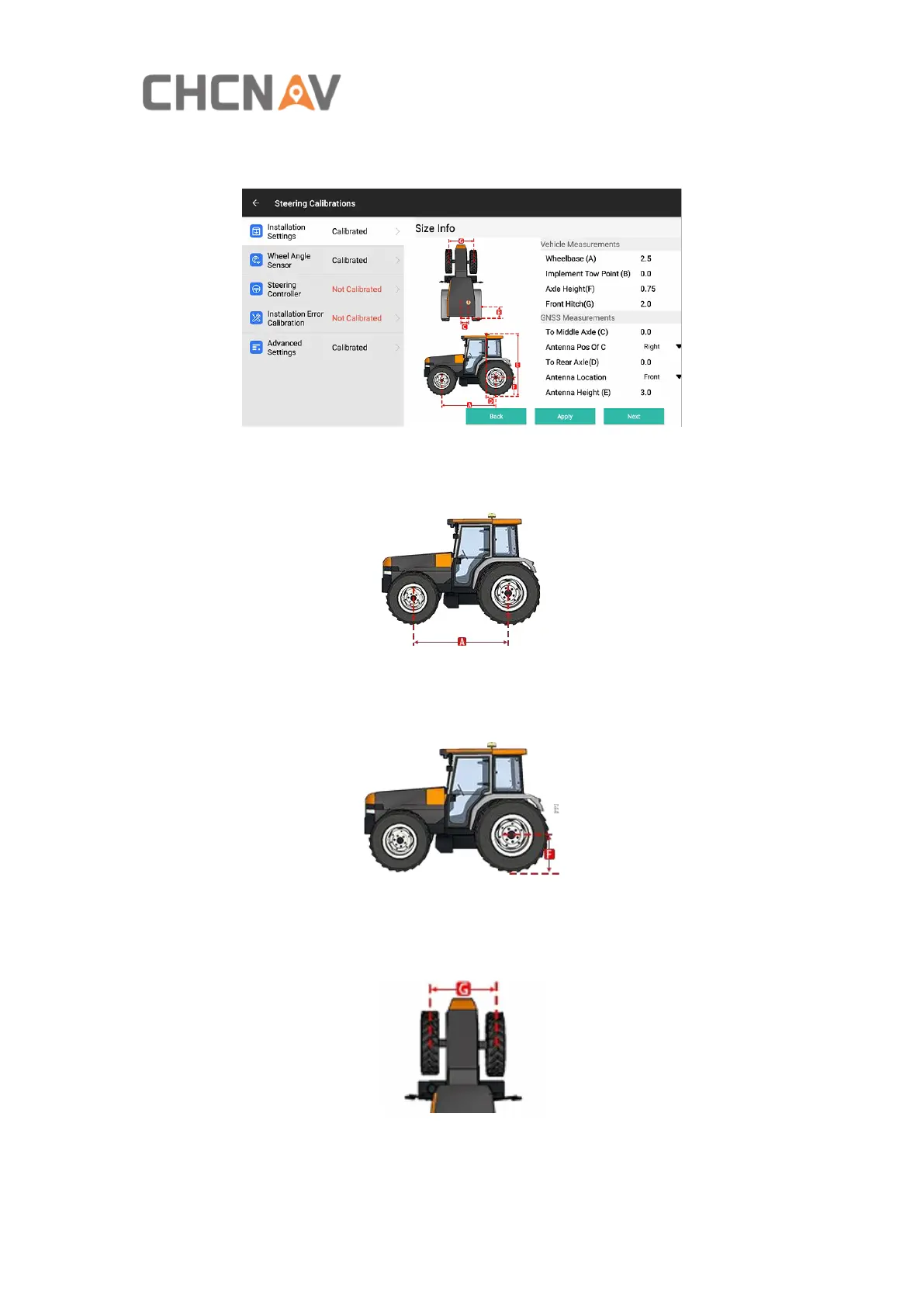

b) Enter the vehicle parameters
Measure and enter the parameters of the vehicle, the unit is meter.
Wheelbase of front and rear wheels (A): Measure the distance between front wheel
rotation axis and rear wheel rotation axis. Note that the tape measure needs to be
parallel to the ground.
Implement Tow Point (B): Use the default value of 0 and it will be used in the futural
development.
Axle Height (F): Measure the vertical height from the rear axis center to the ground.
Front Hitch (G): Measure the distance between the two front wheels.
To Middle Axle (C): If the receiver is not mounted on the central axis, measure the
