52
distance from the receiver to the central axis. If it is on the central axis, enter 0. In
reality it is always better enter 0 and do the rest in assembly error calibration.

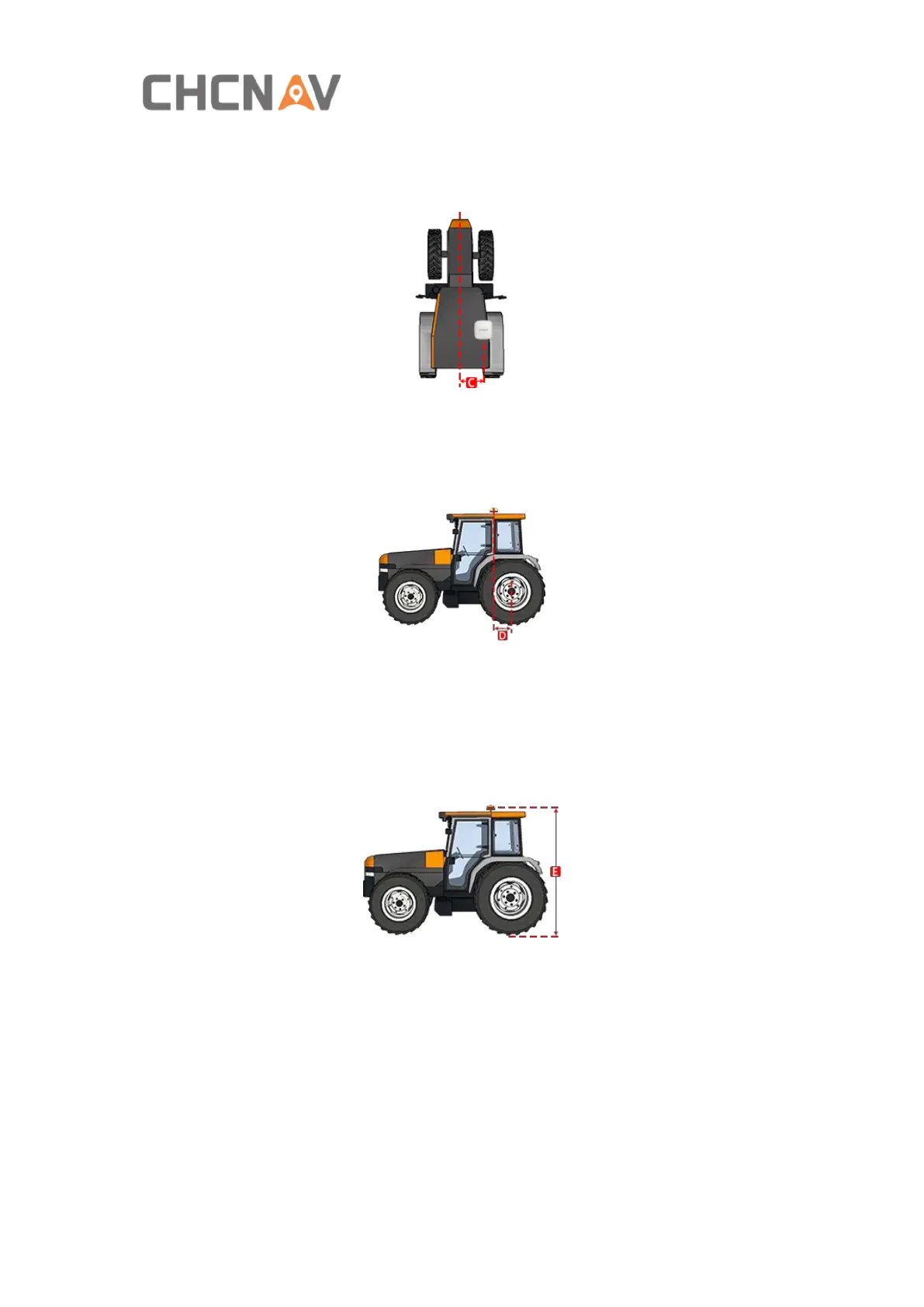

Antenna position of C: Fill in according to the receiver position.
To Rear Axle(D): Measure the horizontal distance from the antenna center to the
rear wheel center.(It is convenient and accurate to project the antenna center and
the rear wheel center onto the ground, then measure it.)
Antenna Location: The relative position between the antenna center(the position of
the antenna center should be referred to the blue indicator) and the rear axis. Select
Front if the antenna is in front of the rear axis, select Rear if the antenna is behind
the rear axis.
Antenna Height (E): Measure the vertical height from the antenna center to the
ground.
Confirm that all parameters are correct before clicking NEXT.
c) Set the GASensor
Location: GASensor mounting position with left or right wheel.
Orientation: The nameplate’s orientation with label up or label down, most cases are
with label up.
