Signal output switch: The switch to turn it/off the 5V pulse signal.
Signal output type: It includes Transplanter and Seeder these two types, 5V pulse
signal advanced settings can be edited only after select the Seeder.

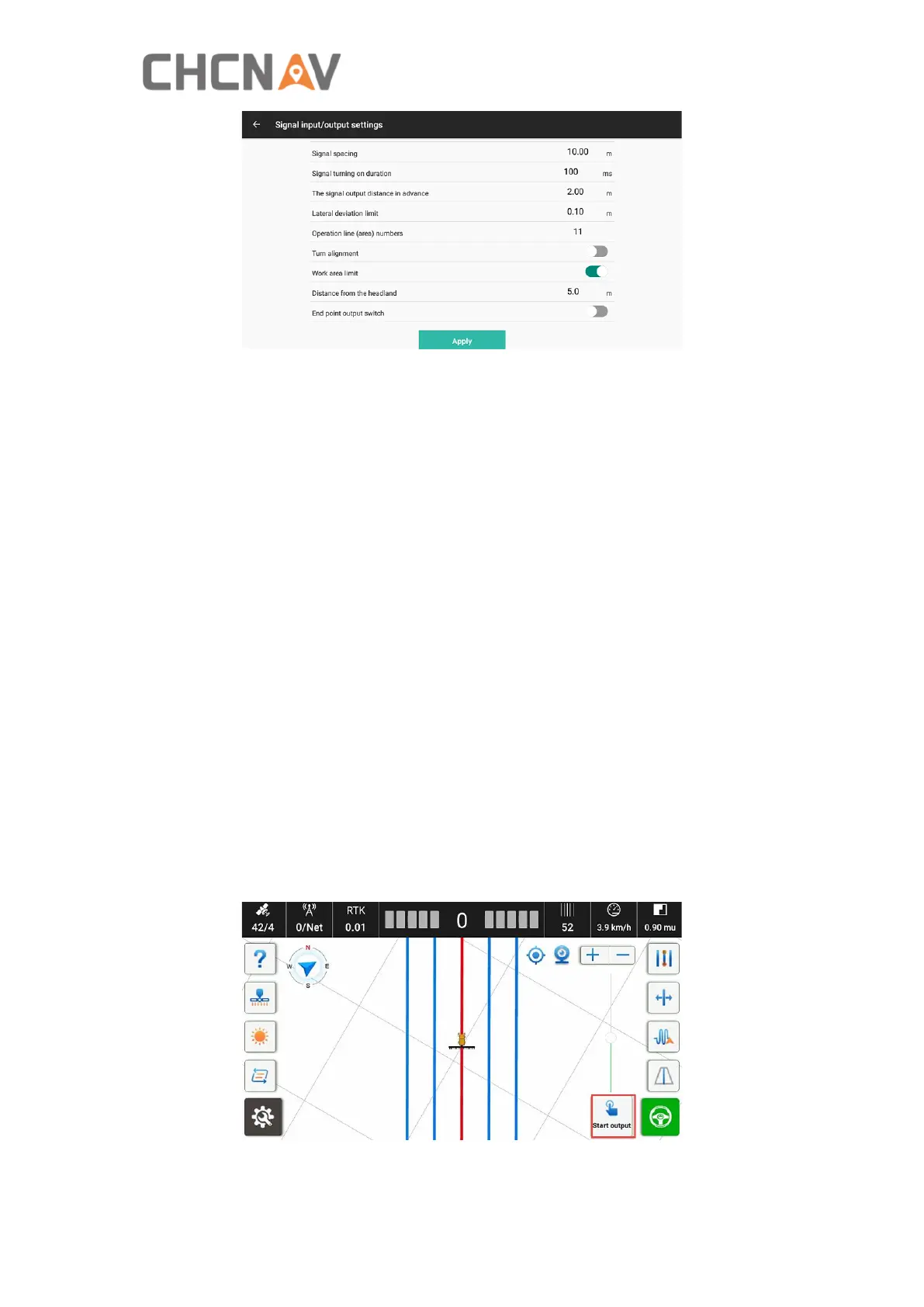

Signal spacing: The distance interval of outputting 5V pulse signal.
Signal turning on duration: The duration of outputting the 5V pulse signal.
Lateral deviation limit: Keep output 5V signal output within he tolerance of auto
driving away the guidelines.
Operation area numbers: Every area with one interval as one operation number
which is only used when turn on the Work area limit option.
Turn alignment: Keep the same output as the first guideline.
Work area limit: Set the area close to headland where not output the signal.
Distance from the headland: The distance from start point or end point when set the
Work area limit.
All guidelines take point A as the starting point of the operation, and then calculate
the position of the end point based on the Operation area numbers.
End point output switch: Output the signal at the end point when set the Work area
limit.
Click Apply, it will skip to main menu automatically, it is able to click Start output this
icon to start output after start auto steering and take to the line.
