81

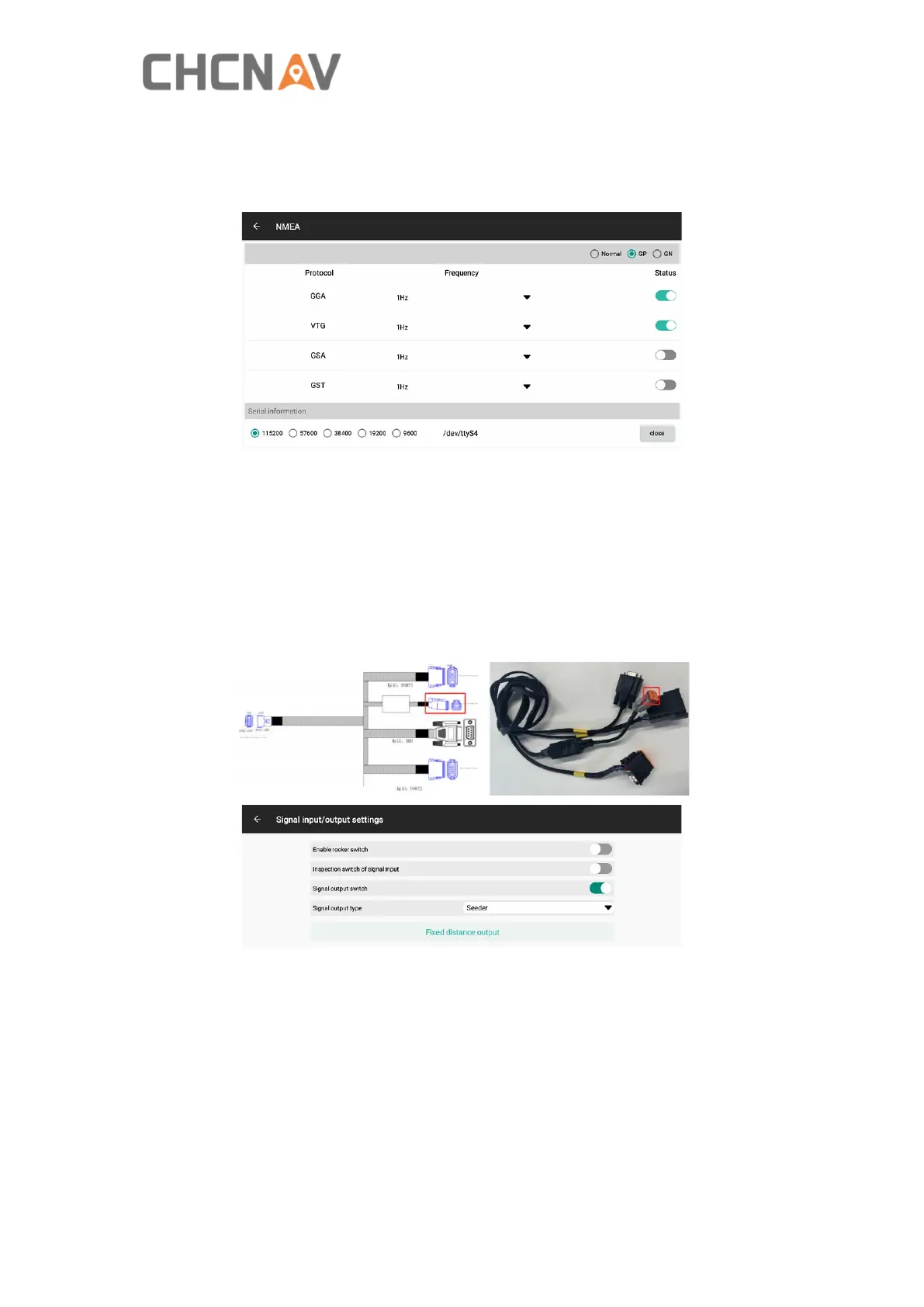

with 5s to 10hz outputting frequency, then users can configure the baud rate from
9600 to 115200, finally it is necessary to enable the message status what configured
and click Open in the last step. On the terminal side, it will decode the NMEA
messages and get the correction information to display.
4.2.11.3.3 5V pulse signal output
5V pulse output is mainly for planting trees scene which can output signal to terminal
devices and also can mark/display some information in the AGNAV3.0 software, this
feature is mostly based on AB line and A+ line as well.
Also with the extra adaptive cable(PN: 4103020151) to connect to tablet Port3, then
the these 2pin can be connected to terminal devices with outputting the signal.
