RM238 Series
System Components Removal and Installation ā 21
2-1 Top Cover Removal and Installation

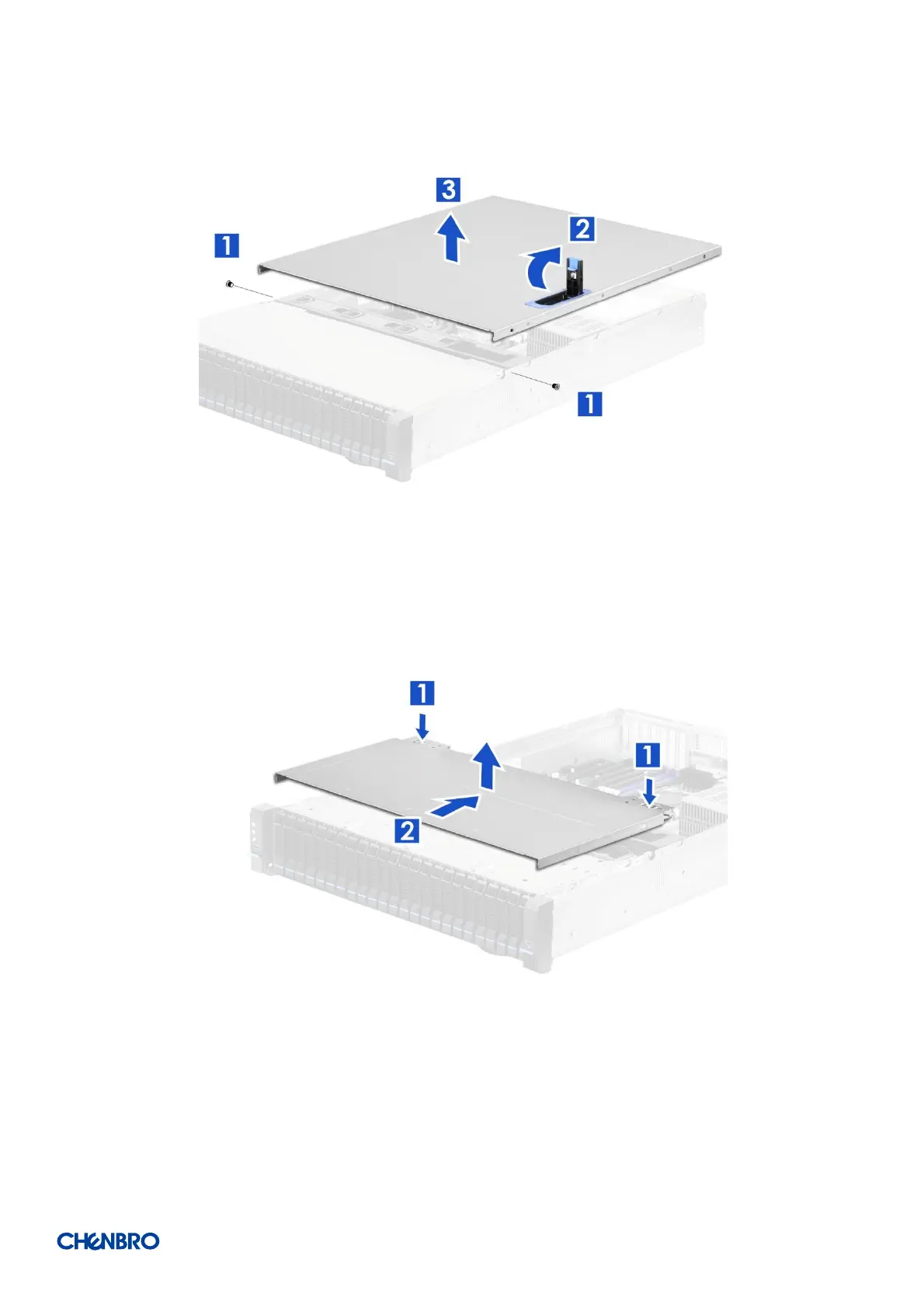

Figure 22 Rear top cover removal
1. Loosen two screws on the rear top cover.
2. Pull the latch as shown to release the cover.
3. Remove the cover.
Figure 23 Front top cover removal
1. Press two buttons together on the cover without release.
2. Slide the cover as shown and remove it.
To Next Page
