RM238 Series
System Components Removal and Installation │ 44

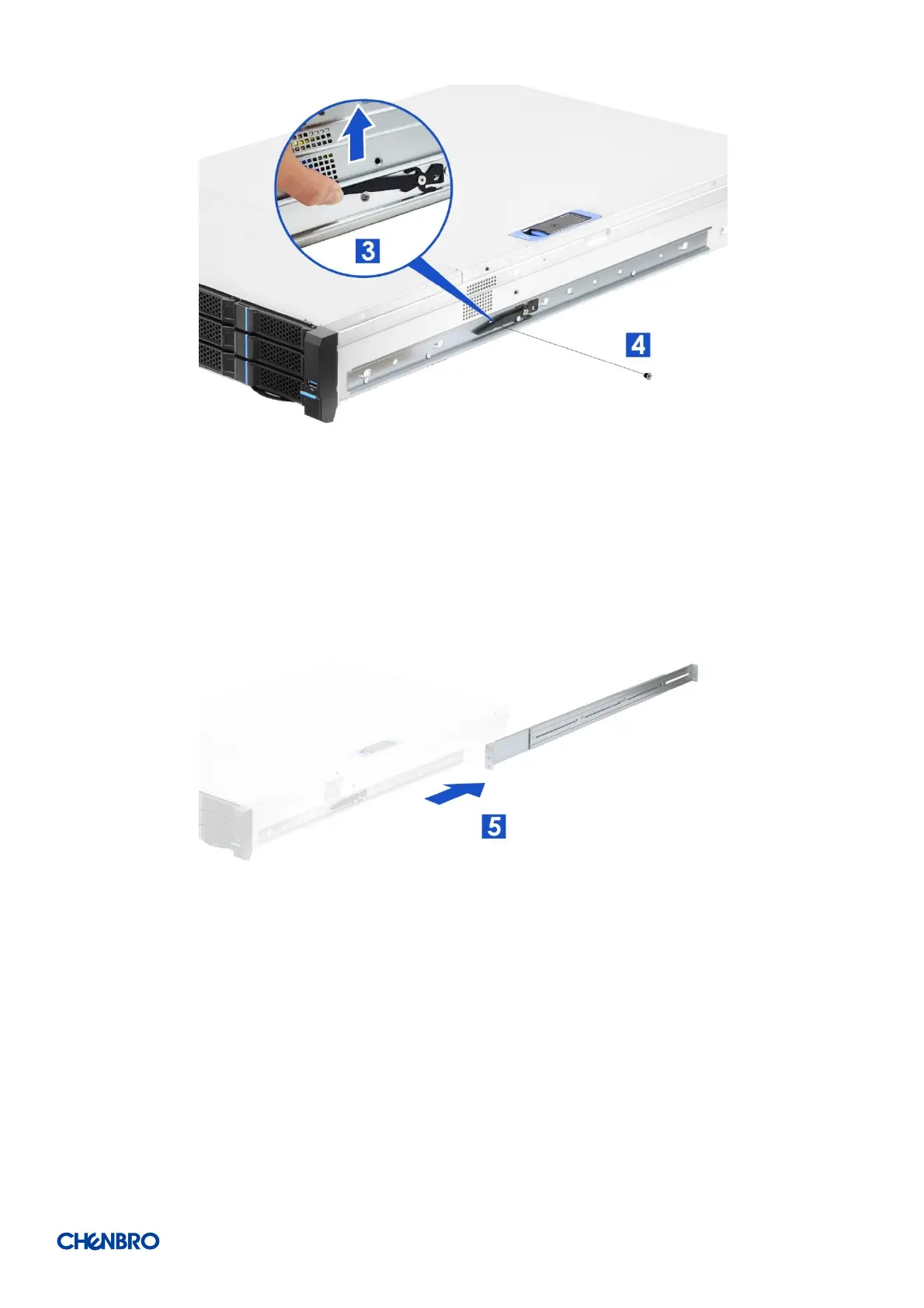

Figure 66 Slide rail installation-3 (384-23803-3300B0)
3. Lift the latch as shown.
4. Secure the inner rail with one screw.
Figure 67 Slide rail Installation-4 (384-23803-3300B0)
5. Install the system into the rack.
