RM238 Series
System Components Removal and Installation │ 25

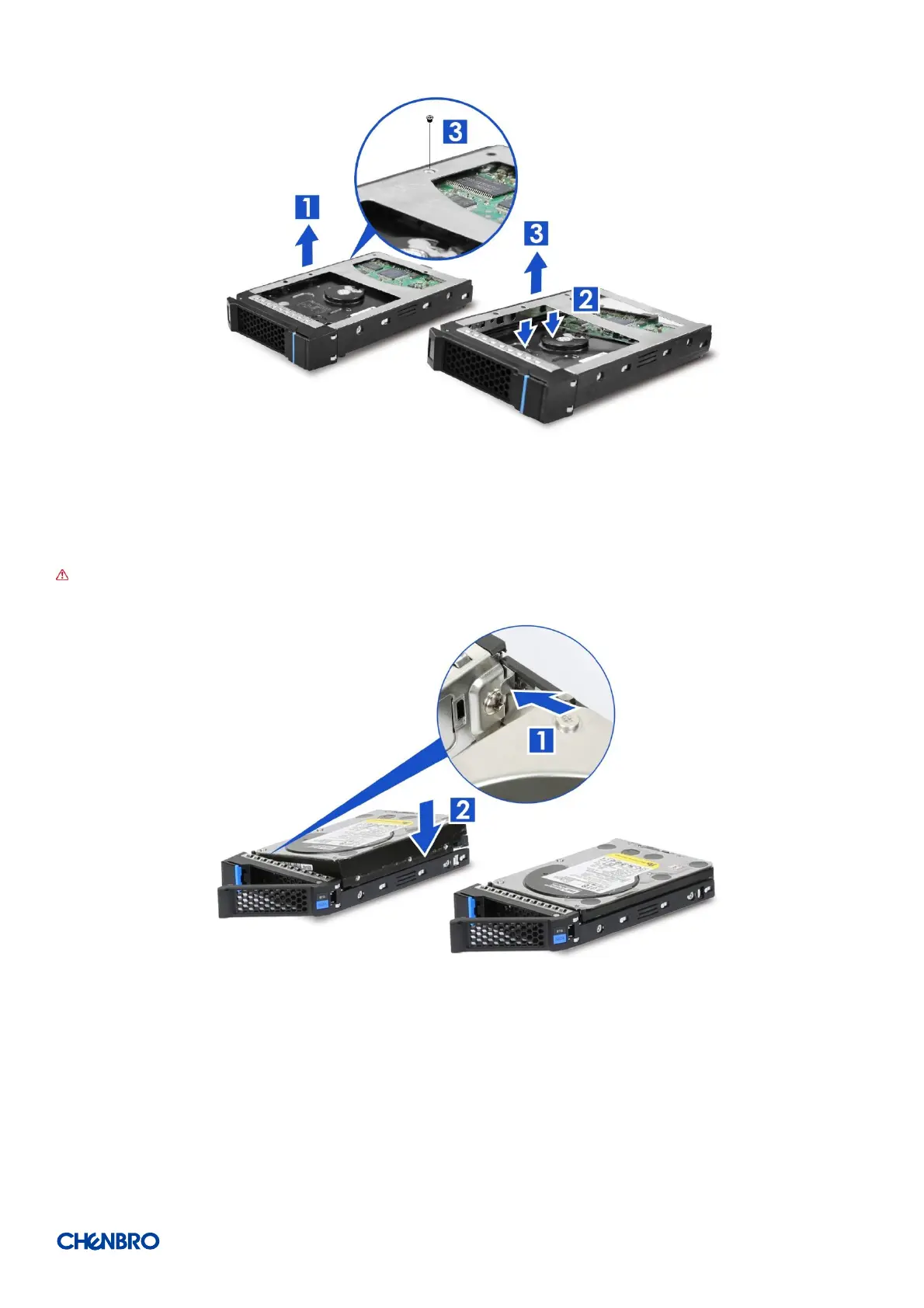

Figure 30 3.5” HDD removal (tool-less type)
1. Bottom up the HDD assembly, and loosen the screw as shown.
2. Press out the HDD by your two thumbs.
NOTE: Please operate this on a stable surface in case the HDD dropping unexpectedly.
3. Lift the other side with your other fingers and release the HDD.
Figure 31 3.5” HDD installation (tool-less type)
1. Slide in the HDD until it aligns the anchor point of the HDD tray.
2. Push down the HDD when it is locked into place.
