RM238 Series
System Components Removal and Installation ā 22

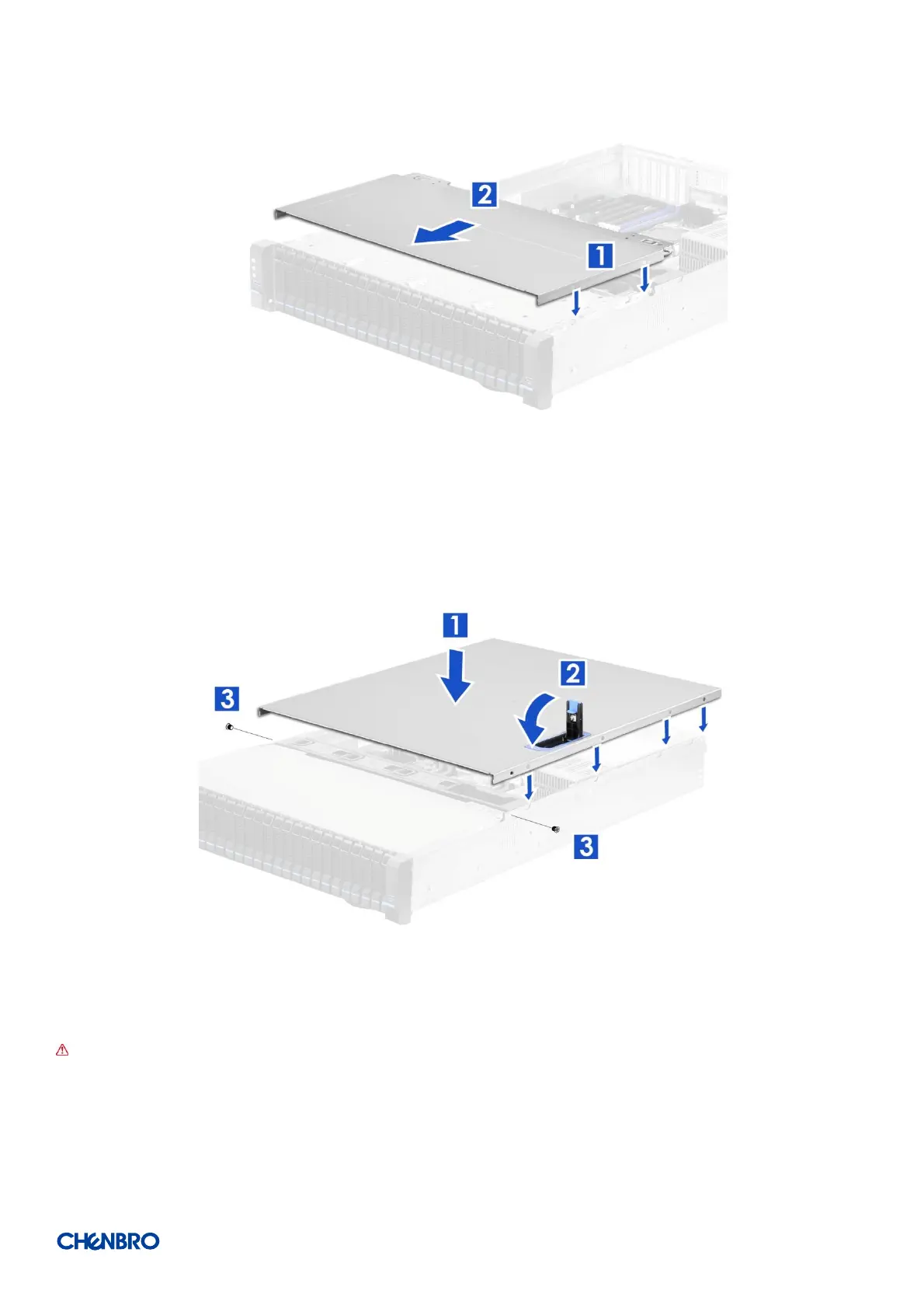

Figure 24 Front top cover installation
1. Align the guide pins of the cover with the grooves on the chassis base. (Three guide pins for both sides)
2. Slide the cover toward the front panel until it is locked into place.
Figure 25 Rear top cover installation
1. Align the guide pins of the rear top cover with the grooves on the chassis base. (Four guide pins for both sides)
NOTE: Keep the latch vertical when you install.
2. Install the cover as shown, and press the latch to lock.
3. Secure it with two screws.
