Chenbro RM23808 User Manual

RM238 Series
Backplane │ 61
3-6 2.5” 8-Port 12Gbps Mini-SAS HD Passive Backplane
Table 23 Backplane specifications
Specification
Host Interface
Mini-SAS HD
Device Interface
SFF-8680
Hot-Swap
Yes, allows users to replace storage devices online
Display
LED indicates storage device status
Power LED – Off (Fault)
– Blue on (Present)
Activity LED – Green on(Access)
– Red on (Failure)
– Red 1Hz blink (Rebuild)
– Red 4Hz blink (Locate)
Environment Monitor
Temperature sensor TMP75 (U3)
Connector
1. 8 x SFF-8680
2. 2 x Mini-SAS HD
3. 1 x 8-pin ATX Mini-Fit power connector for +12V only
4. 4 x 4-pin fan
5. 2 x 4-pin I2C
6. 1 x 6-pin SMD switch
Dimension (L x W x H)
142.0 x 580 x 2.4 (mm)
Material
FR4 8 layers

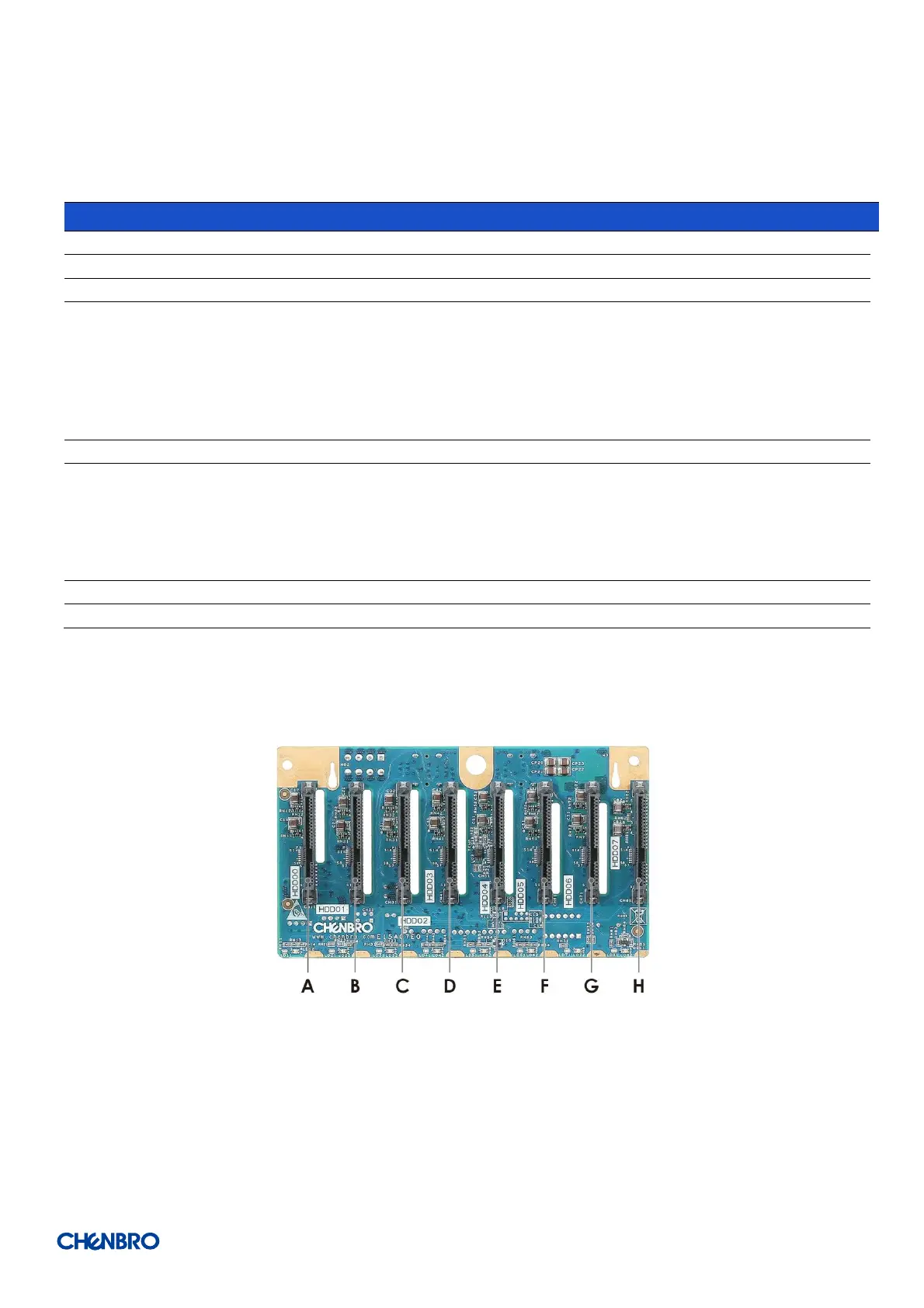

Figure 80 Backplane front view
A. HDD_0
B. HDD_1
C. HDD_2
D. HDD_3
E. HDD_4
F. HDD_5
G. HDD_6
H. HDD_7
