RM238 Series
Backplane ā 54

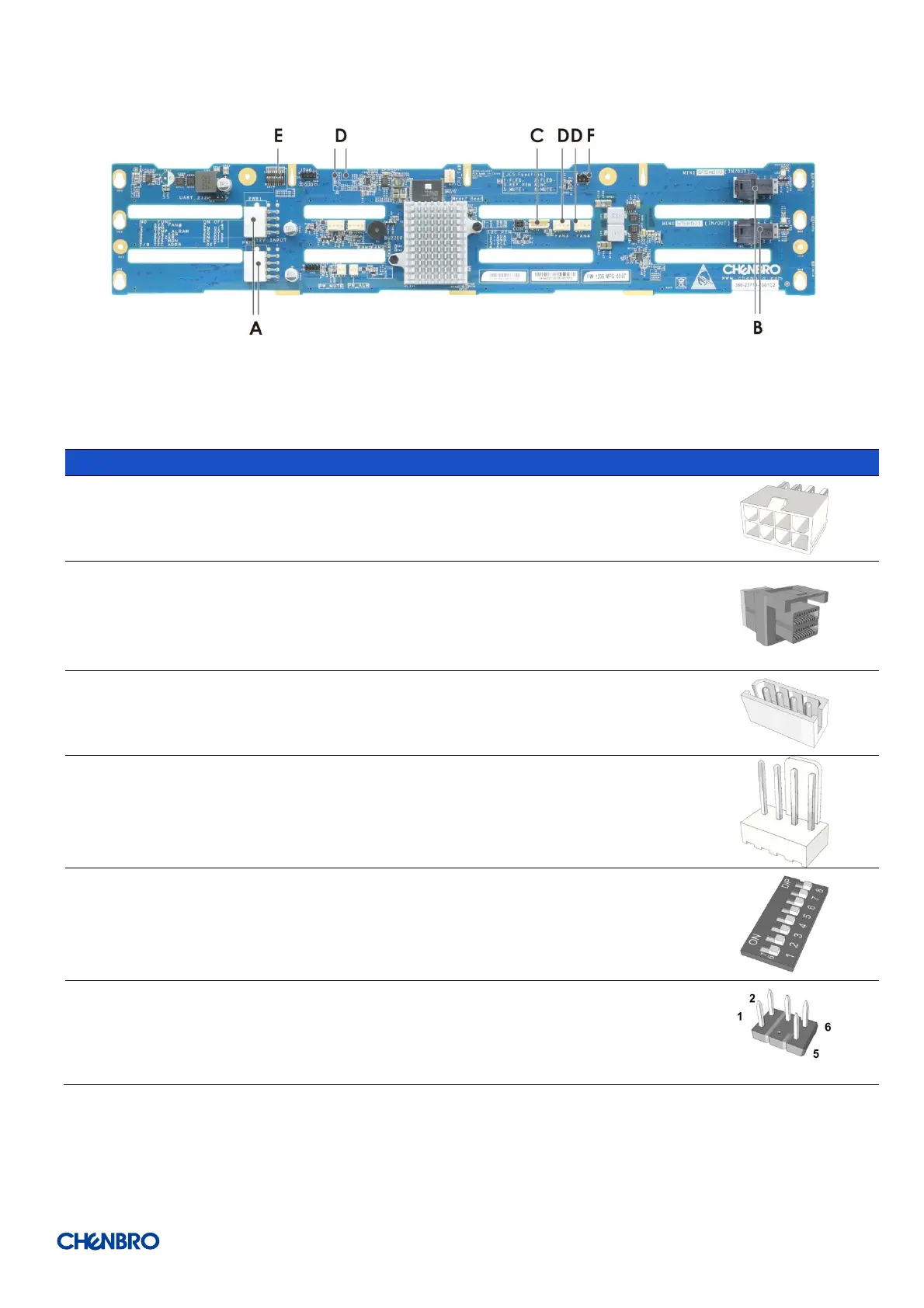

Figure 74 Backplane rear view
Table 15 Connector and pin header function description
The backplane includes two power connectors
supplying 12V input to the backplane. Power is
routed to the backplane via a power cable harness
from the power supply.
The backplane includes two multi-port Mini-SAS HD
connectors providing data signals for twelve
SATA/SAS drives on the backplane. A cable can be
routed from matching connectors on the add-in
SATA/SAS HBA cards.
The backplane includes one 4-pin connector used as
a management interface to the server board.
The backplane includes four fan connectors used to
control and monitor fan speed.
Follow below the Dip switch setting table.
Fan setting for RM23812 active BP.
