2-2 HDD Cage Removal and Installation

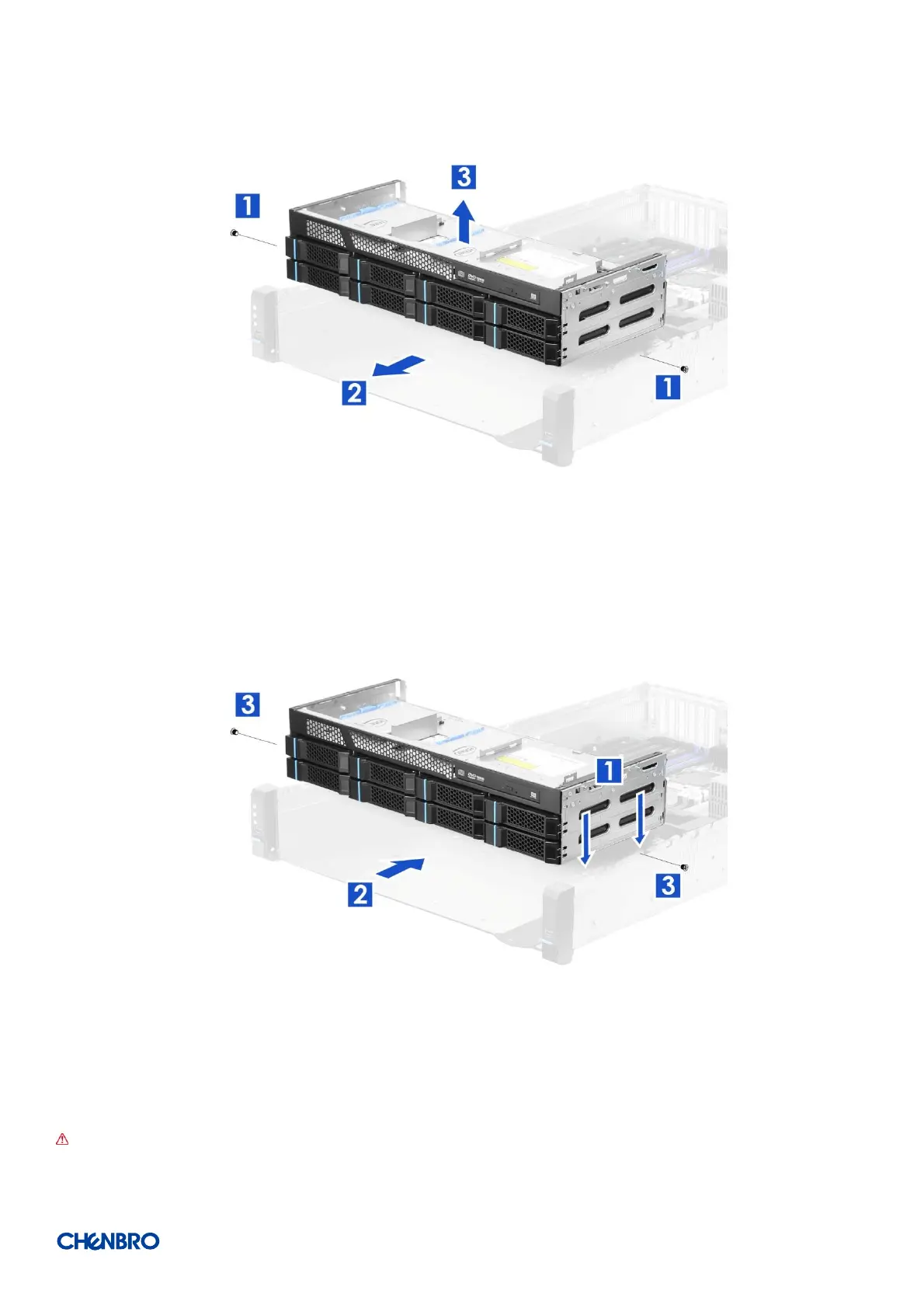

Figure 26 HDD cage removal
1. Loosen the two screws of the chassis base as shown.
2. Pull the HDD cage toward the front panel until it unlocks.
3. Remove the HDD cage vertically.
Figure 27 HDD cage installation
1. Align the guide pins of the HDD cage with the grooves on the chassis base as shown.
2. Push the HDD cage backward the front panel until it locks.
3. Secure the HDD cage with two screws as shown.
NOTE: All cage SKUs follow the same removal and installation guidelines.
