RM238 Series
Backplane │ 55

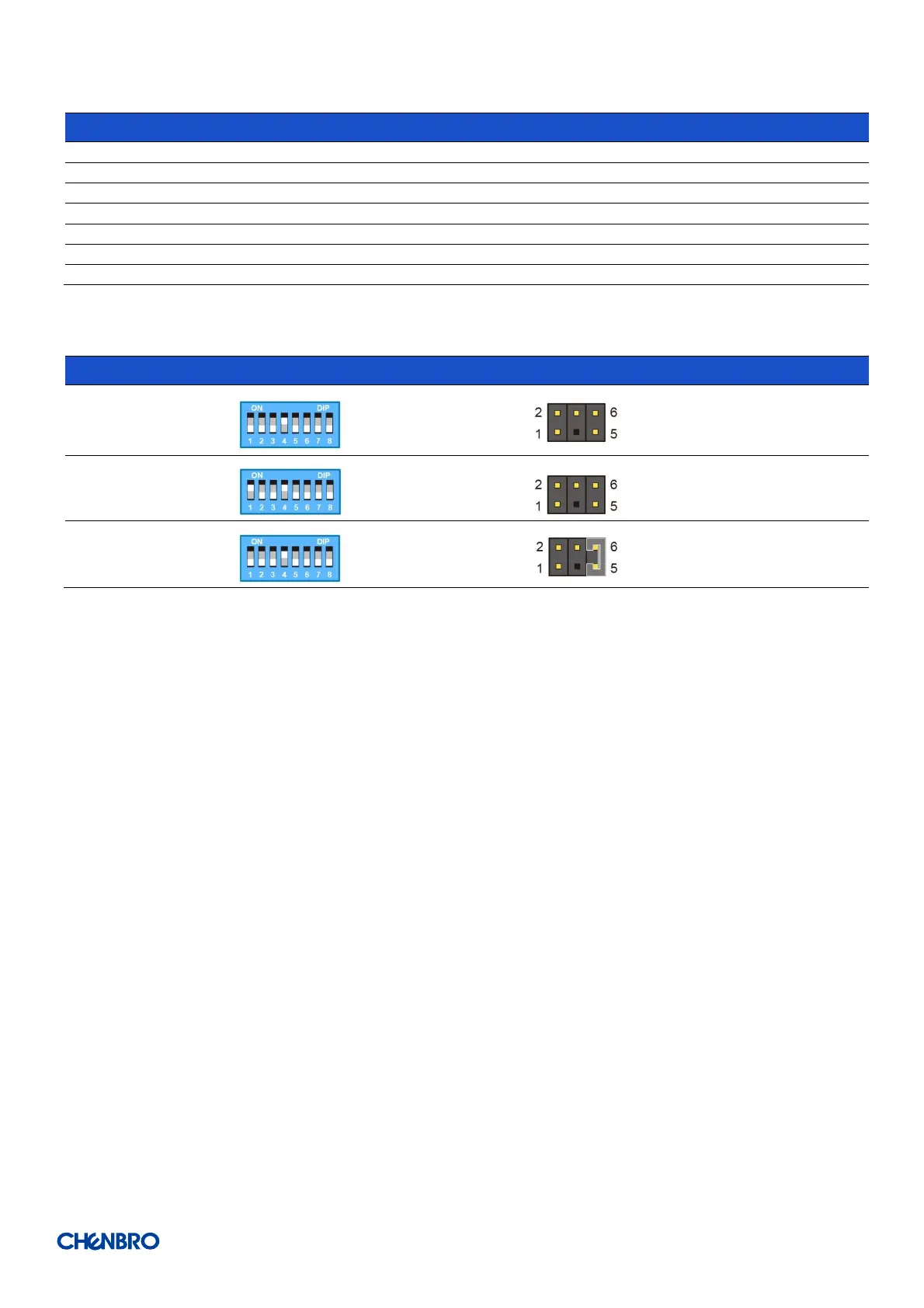

Table 16 Dip switch setting
PIN-Number
PIN-Definition
ON
OFF
1
System Fan Quantity
2
4
2
PWM
EN
DISABLE
3
Temperature Alarm
55
65
4
System Fan
EN
DISABLE
5
Buzzer
EN
DISABLE
6
SES MON
EN
DISABLE
7/8
I2C Address
SET
SET
Table 17 Fan setting for RM23812
DIP
JC5
Fan
DIP 4 ON，DIP 1 OFF
PIN 5,6 OPEN
4
DIP 4 ON，DIP 1 ON
PIN 5,6 OPEN
2
DIP 4 ON
PIN 5,6 SHORT
3
