RM238 Series
System Components Removal and Installation │ 32
2-5 Slim ODD Removal and Installation

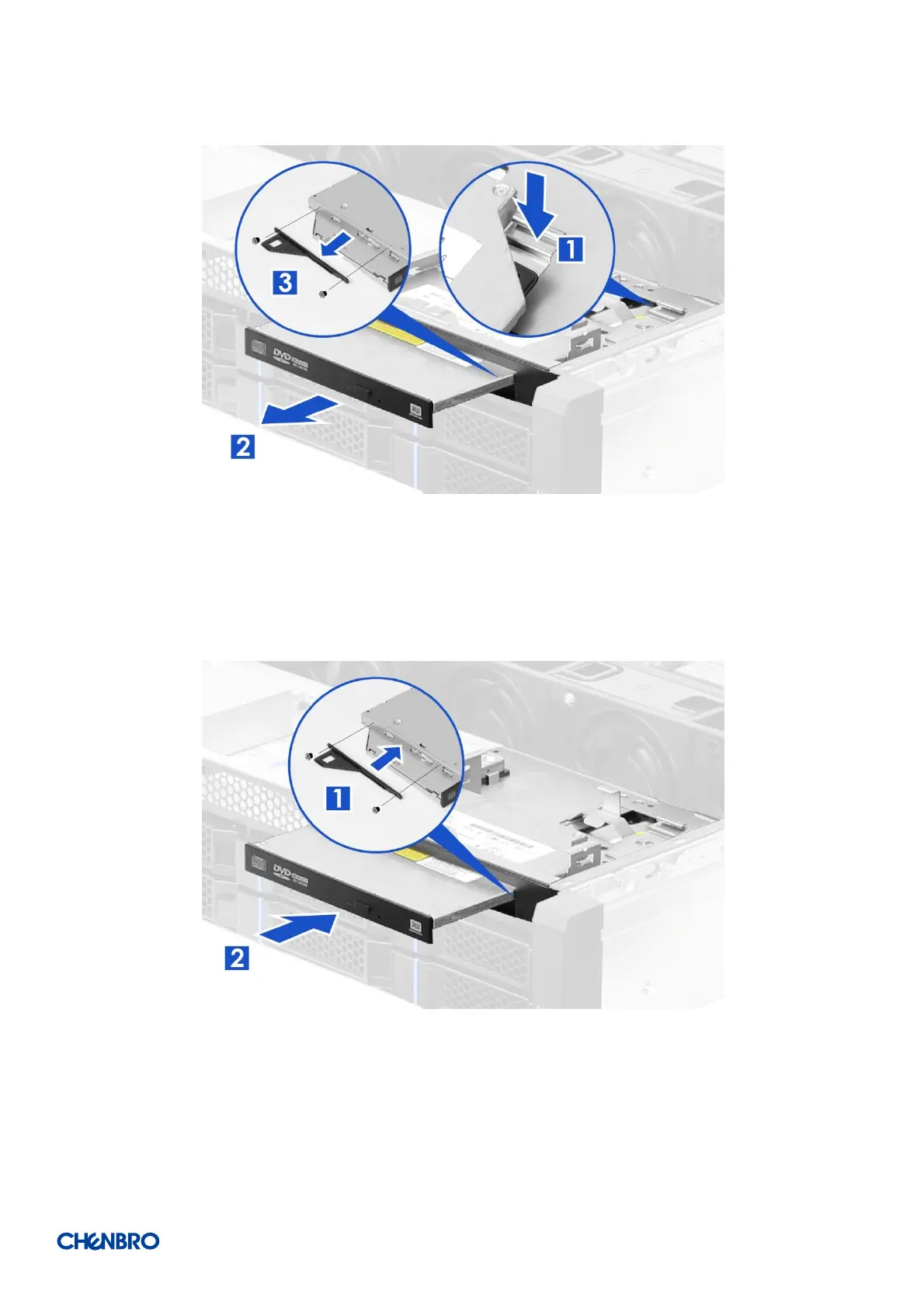

Figure 44 RM23808 slim ODD removal
1. Press the latch to release the ODD assembly.
2. Pull it out of the cage.
3. Loosen the two screws to detach the plastic bracket.
Figure 45 RM23808 slim ODD installation
1. Secure the plastic bracket onto the slim ODD with two screws.
2. Insert the slim ODD assembly into the drive bay and push it until secured into place.
