Operating Guidelines Edge/Edge Blanket
3-10
Feeding Large Pieces
NOTE: The unit is designed to
process large pieces of flatwork
ranging in size from 48” (1220
mm) to 120” (3050 mm). It is NOT
designed to feed folded flatwork.
If necessary, make sure the large piece
conveyor safety bracket has been released
and press the DISCHARGE CONVEYOR
UP/DOWN switch to the DOWN position
(Figure 3-8, A).
On the CHI Panel, press a STATION but
-
ton to select a program.
Remove a sheet from the laundry basket.
Place the approximate center of the long
side of the flatwork between the inlet con
-
veyor belts (Figure 3-11). It is important
that there are no folds in the flatwork.
Turn to the next piece. Everything after
this is done automatically.
The ribbons carry the flatwork to the
top-center of the unit where the piece
is spread full width.
At the same time, the spreader belts
at the center of the unit smooth the
flatwork. This makes sure the whole
piece is evenly spread before feeding.
The spreader clamps release and a brief
blast of air lays down the flatwork onto
the discharge ribbon set which carries
the piece to the ironer.
NOTE: Always follow the site
standards to avoid repetitive
motion injury.
1.
2.
3.
4.
5.
a)
b)
c)
Feeding Small Pieces
Flip the DISCHARGE CONVEYOR UP/
DOWN switch to the UP position.
When the discharge conveyor reaches
it full upright position, make sure the
red large piece conveyor safety bracket
engages.
Move the unit away from the next ma
-
chine; if installed, use the EASI-GLIDE
motorized option to move the unit.
Feed small pieces based on the work rules/
procedures of your site.
When finished feeding small pieces:
Release the large piece conveyor safety
bracket
Flip the DISCHARGE CONVEYOR
UP/DOWN switch to the DOWN
position.
Move the unit back into position.
Flip the first doffer roll back into large
piece feeding position.
Waxing
To accommodate waxing the ironer, follow the
Feeding Small Pieces procedure.
1.
2.
3.
4.
5.
a)
b)
c)
d)

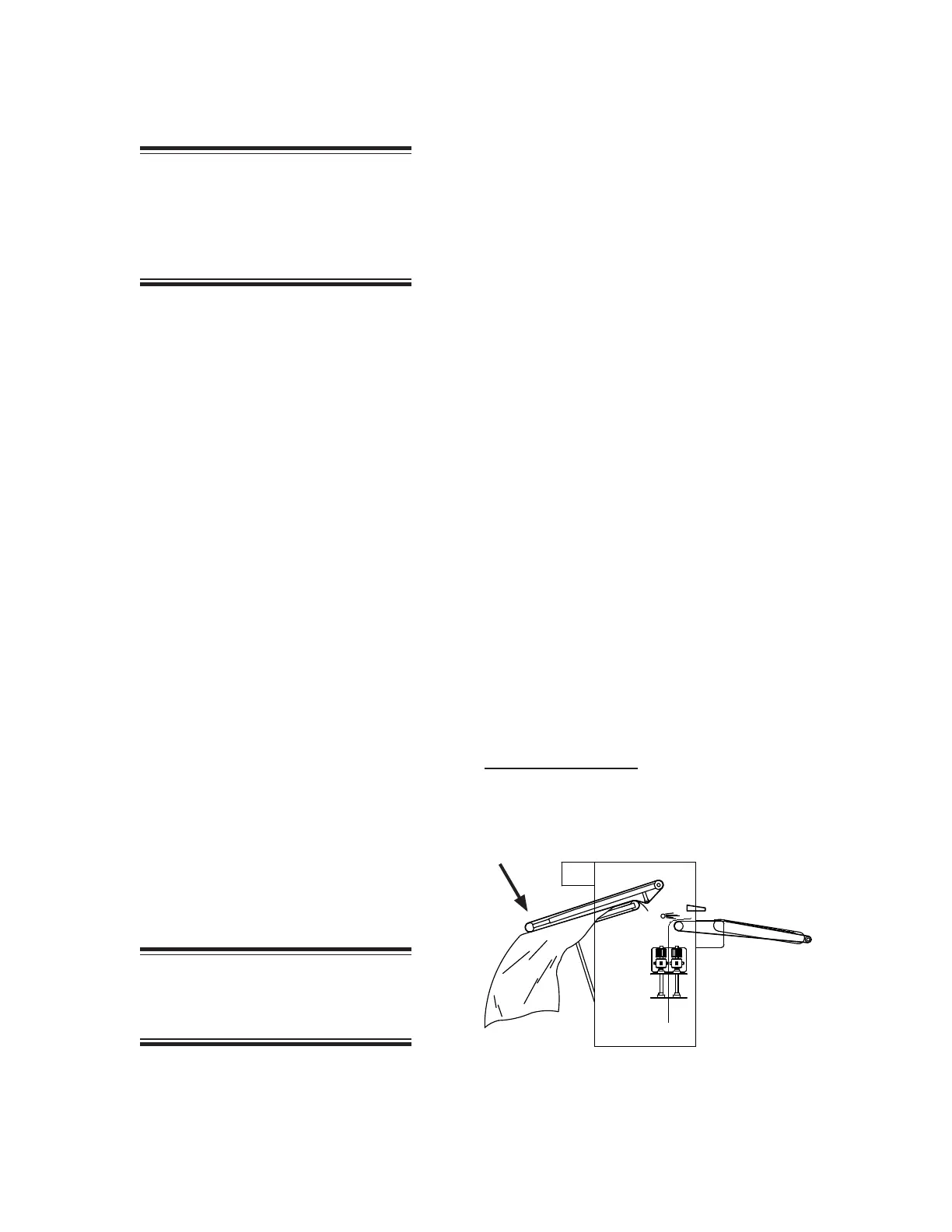

Figure 3-11: Place the approximate center of the
long side of the flatwork between the
inlet conveyor belts.
