Operating Principles Edge/Edge Blanket
5-8
Main Electrical Panel Components
All control components are located in the
main electrical panel (Figure 5-5) in the right
endframe. The table on the next page provides
an explanation of each item indicated in the
picture.
MPC1 Board
The MPC1 circuit board provides all of the
control logic for operating the unit.
IC1
PSC1
MPC1
SC1
IC2
IC3
IC4
OC2
OC3
OC4

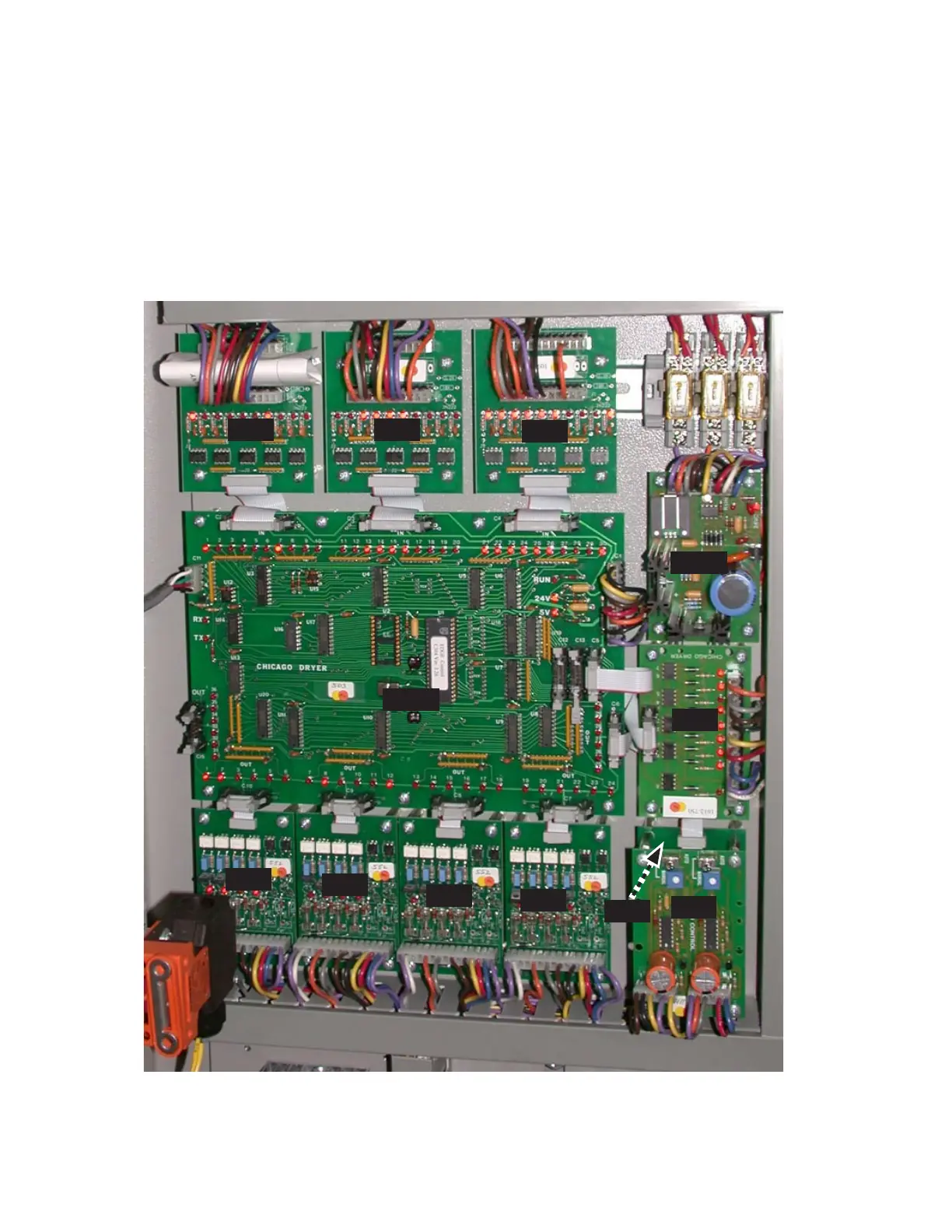

Figure 5-6: Control components in the main electrical panel. Note that OC5 is positioned under SC1.
OC1
OC5
