Digital Power Meter 66200 Series User’s Manual
1-2
1.3
(1)
(2)
(3)

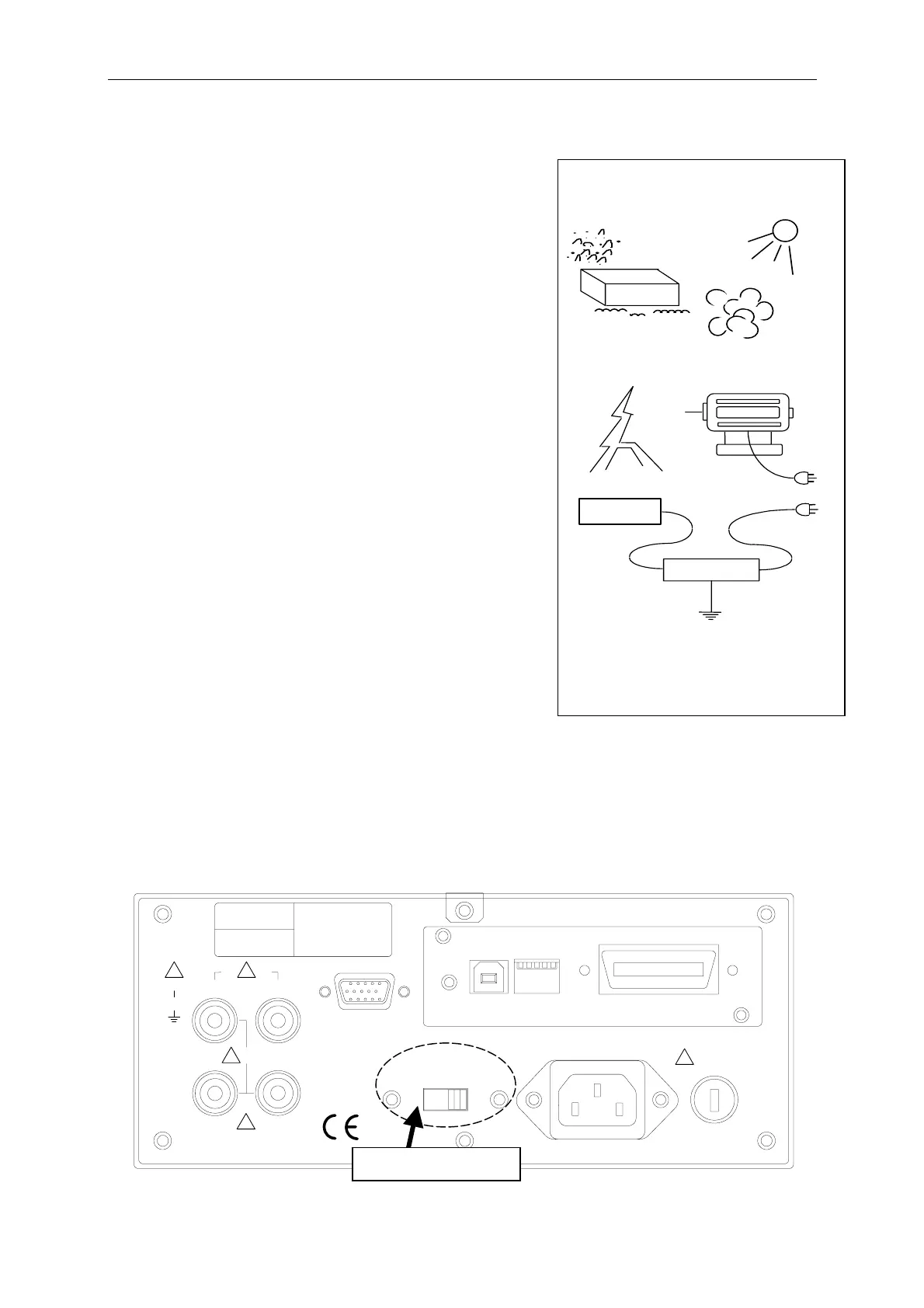

Ambient Environment
Keep away from the followings:
Dust
Direct Sunlight
66200
Vibration
Corrosive
Gas
Noise
Source
66200
Power Filter
Please install a power filter in case of
interference from high power noise.
Do not use the meter in a dusty or vibrating location.
Do not expose it to sunlight or corrosive gas. Be
sure that the ambient temperature is 0°C ~ +40°C and
the relative humidity is 20% ~ 80%.
The meter has been carefully designed to reduce the
noise from the AC power source. However, it
should be used in a noise-free or as low as possible
environment. If noise is inevitable, please install a
power filter.
The meter should be stored within the temperature
range -40°C ~ +85°C. If the unit is not to be in use
for a long time, please store it in the original or
similar package and keep it from direct sunlight and
humidity to ensure its accuracy when using again.
1.4
Power Line Connection
Before plugging in the power cord, make sure the power switch is off and the voltage selector
on the rear panel meets the required voltage. Please use the power supply frequency of
50Hz or 60Hz.
MODEL NO.
SERIAL NO.
CAT II
ALL INPUT
500Vrms
500Vrms
500Vrms
20Arms
V+ V-
I+ I-
CONTROL
SIGNALS
VOLTAGE RANGE
~ 90 to 130V / 180 to 250V
50 Hz / 60 Hz 30 VA Max
AC LINE
FUSE
T500
m
A/250V
GPIB
USB
! !
!
!
!
Volta
e Selecto
To Next Page
