Using Remote Control
66200 Series provides GPIB and USB two kinds of remote control interfaces and all functions
of panel keys can be controlled by these two interfaces. The USB interface supports 2.0/USB
1.1, while the GPIB interface is complied with IEEE-488 standard.
USB Interface
Supported Hardware: USB 2.0 and USB 1.1
Supported Software: USBTMC class and USB488 subclass
Supported OS: Windows 98/2000/XP
Installing Driver Program:
The USB Interface of 66200 Series supports USBTMC; therefore, if the PC’s OS supports
USBTMC (the PC has installed NI-VISA runtime 3.00 or above) there is no need to install
other drivers in particular. The OS will search the standard USBTMC for installation
automatically.
If the PC’s OS does not support USBTMC, it is suggested to install NI-VISA runtime 3.00 or
above first. The USBTMC driver will be in the OS once the NI-VISA runtime is installed.
Power on the Digital Power Meter after connected it with the PC via USB cable and the PC
can use the 66200 Series SCPI commands through
NI-VISA to communicate with the Digital
Power Meter.
Related Documents:
●
USB Test and Measurement Class (USBTMC) specification, Revision 1.0,
http://www.usb.org
● USB Test and Measurement Class USB488 subclass specification, Revision 1.0,
http://www.usb.org
Definition of GPIB Address

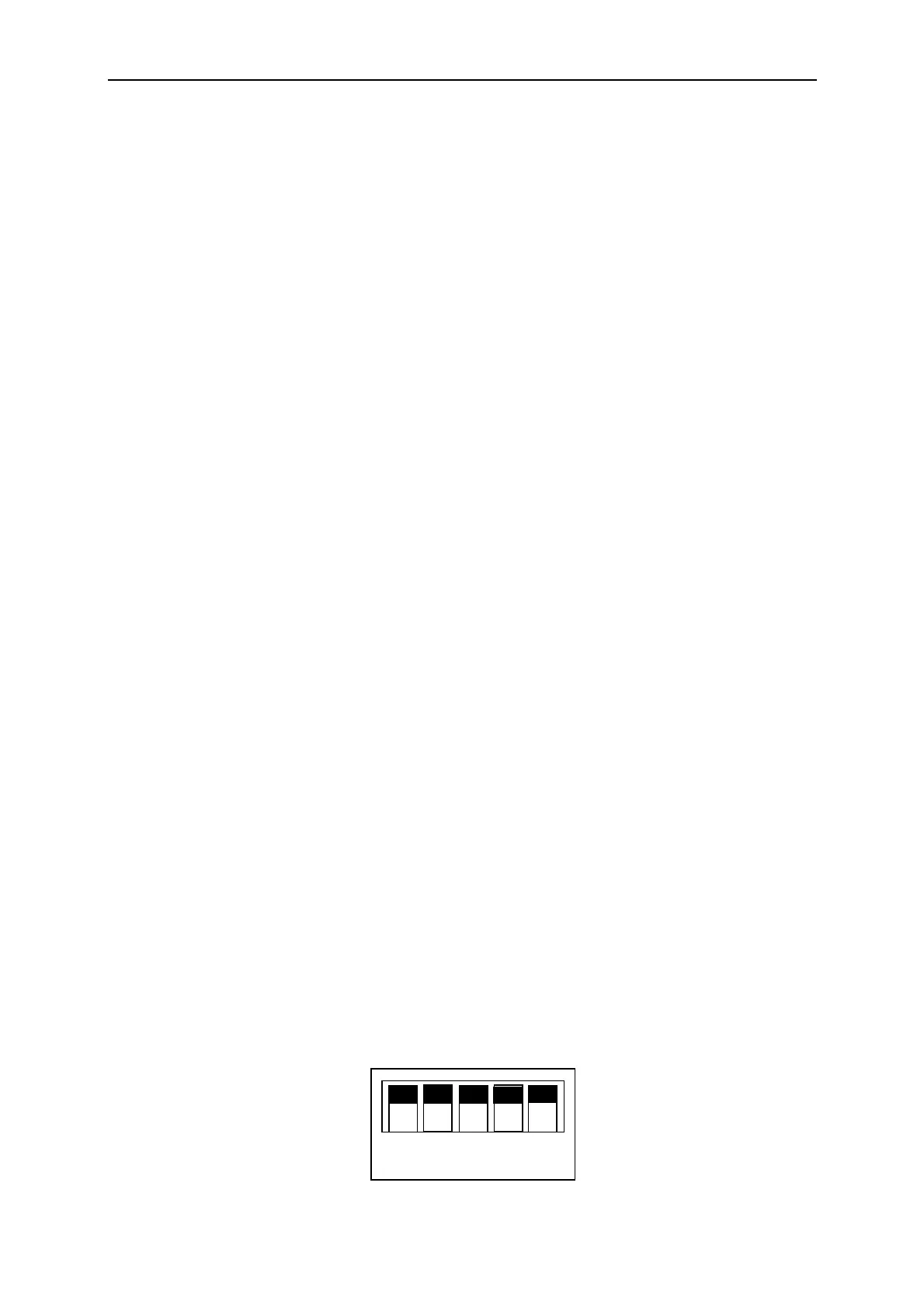

The DIP switch on the rear panel of 66201 defines the GPIB address. The definition is binary
(Bit0~Bit4) with Address 1 ~ Address 30 for setting as shown below. It is High when the
DIP switch is up and Low when down.
543
2
1
5-1
