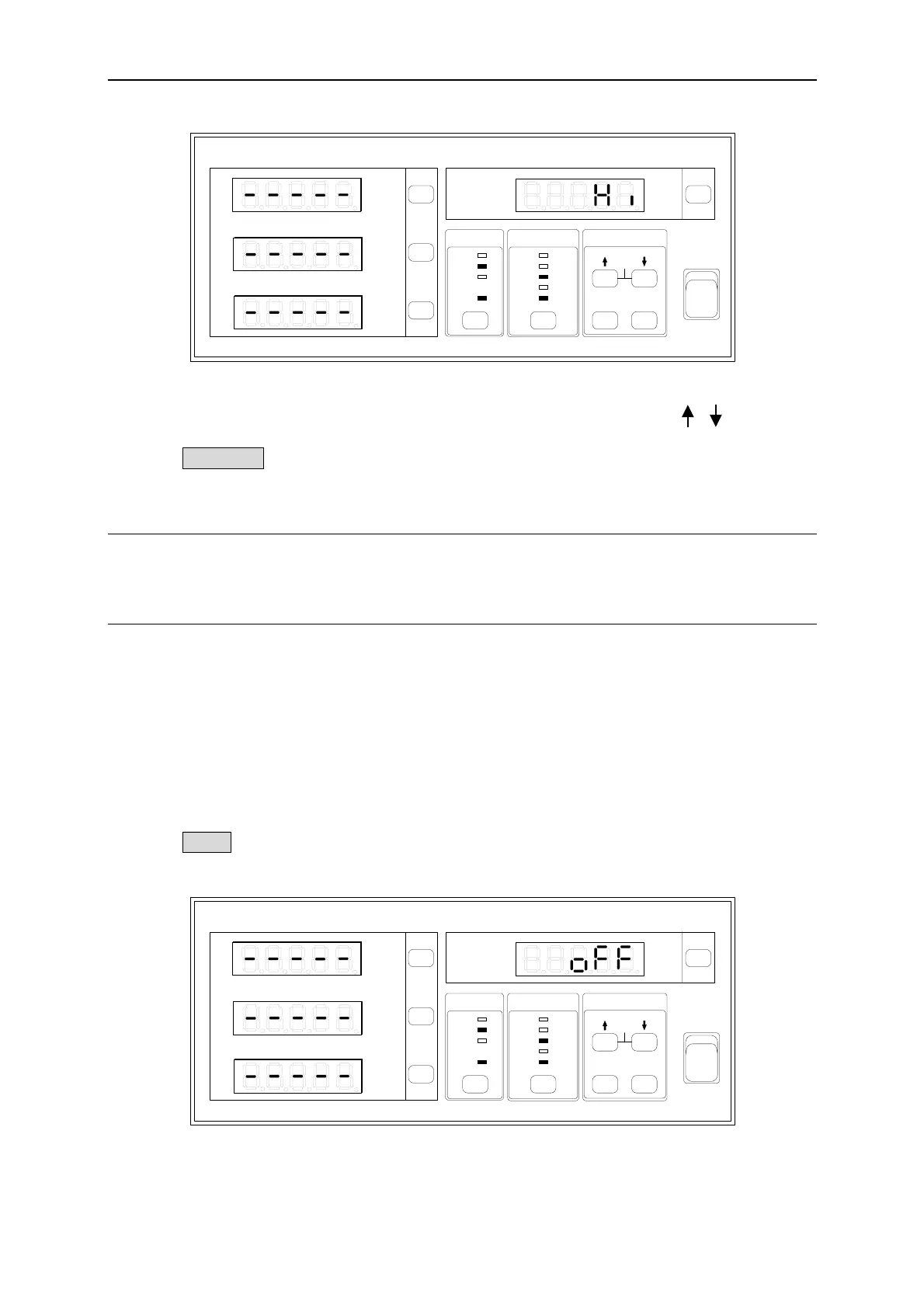

Figure 4-12 Setting Shunt
2. In special measurement display the default setting ‘Hi’ will blink. Use , key to
select the required range.
3. Press Enter/Trig to save the setting and exit the function setting display.
Users can set appropriate current range via the steps described above.
L NOTE
1. When Shunt module is set to Auto, the current range has to set to Auto as well.
2. If the Shunt range is set to Lo, the maximum current can still measure up to 4A(RMS)
only despite the current range is set to AUTO.
4.4.2 Limit Function
Users can enable the Limit function and set the detection time, high/low limit of various
parameters to assess the measured value. The parameters include V, Vpk+, Vpk-, I, Ipk+,
Ipk-, Is, W, PF, VA, VAR, CFi, THDv, THDi, F and E etc. Users can set one or multiple of
them. Here shows an example of the parameter setting of Vpk+:
1. Press Setup to select Limit and the indicator of Limit is on. Figure 4-13 shows the
setting of Limit.
20
8
2
0.2
AUTO AUTOAUTO
150
300
500
VOLTAGE
CURRENT
SHUNT
2
0.4
0.1
0.01
LH
SYSTEM
Cali
Setup
Trig /
Enter
ON
OFF
I
O
GO/NG
PASS
Shunt
Limit
Meas
RMT
FAIL
Is/Trig
PF F
E
CF
THDv
THD
V
Vpk+
Vpk-
mA
I
Ipk+
Ipk-
Is
W
PF
VA
VAR
Chroma
DIGITAL POWER METER
MODEL
66202
k
Figure 4-13 Setting Limit
4-9
