Sync Port
The Sync port has two LEDs associated with it. They are located at the top of

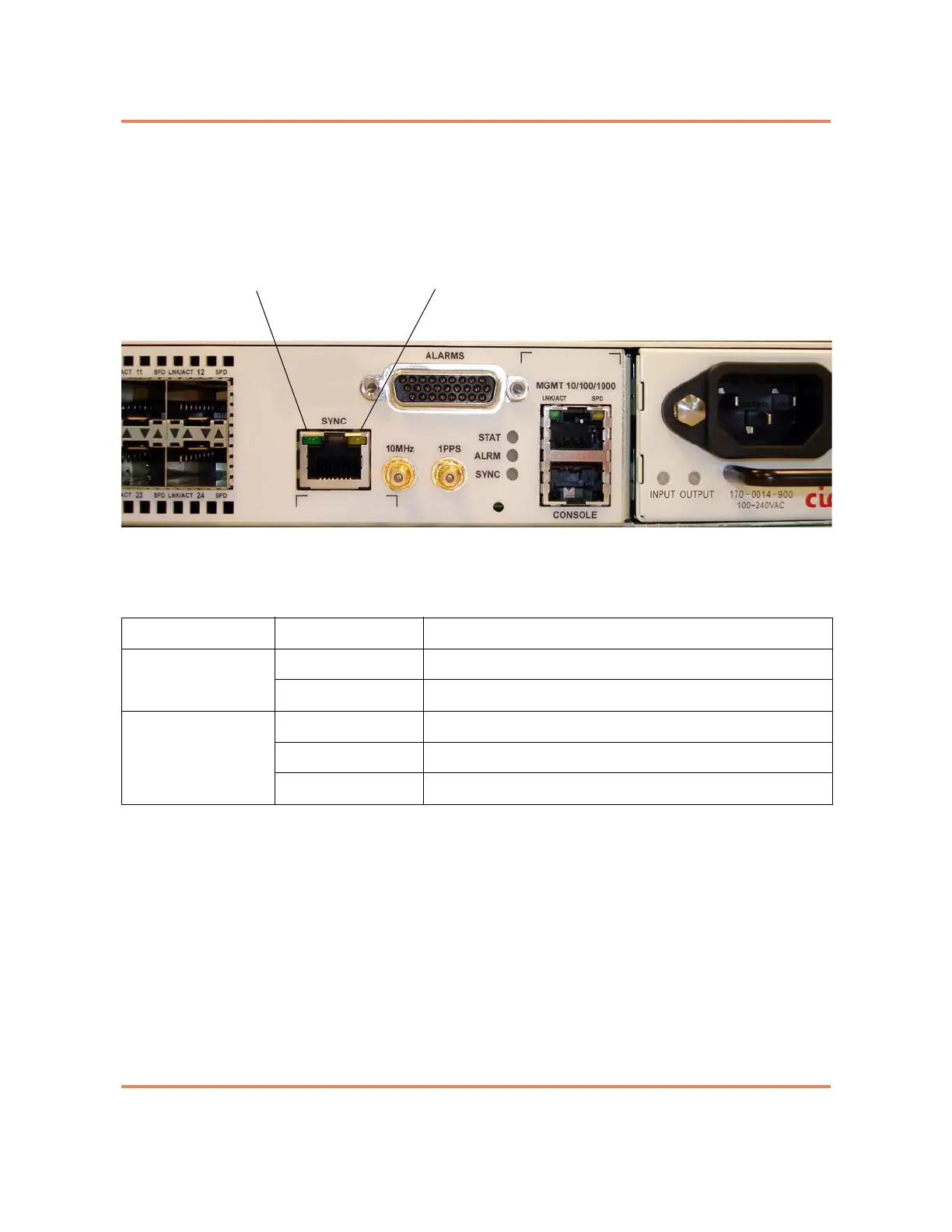

the port and are related to BITS-IN and BITS-OUT. See Figure 5-5.
Figure 5-5
Sync Port LEDs
Table 5-5
Sync Port LEDs
LED Indication Description
BITS-IN Off LOS detected on the receive signal or no signal present.
Yellow Input signal being received on the interface.
BITS-OUT Off BITS-Out port is not provisioned or active.
Green BITS-Out is provisioned and enabled.
Blinking green BITS port is in maintenance state.
