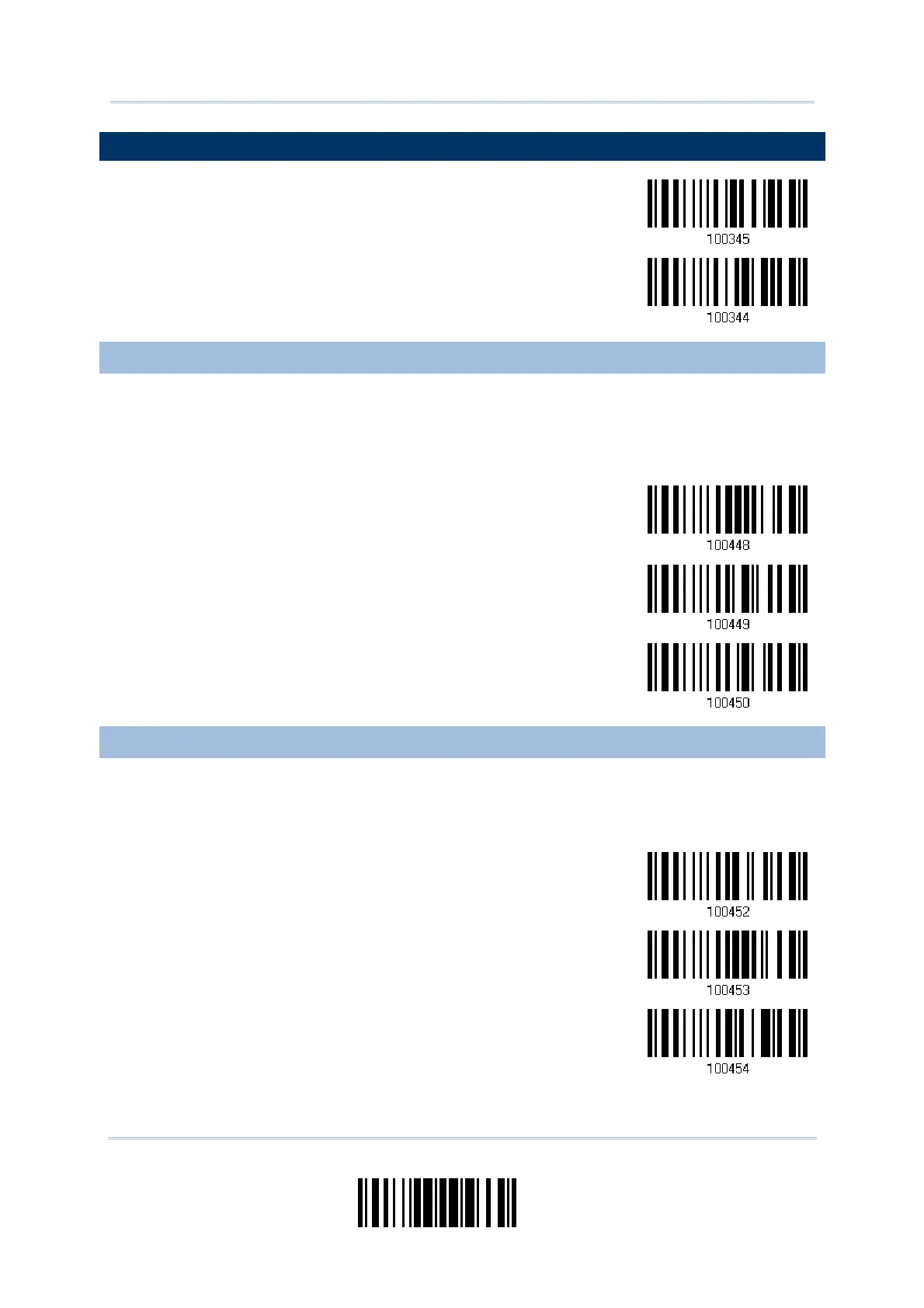

Chapter 4
Changing Symbology Settings
4.12 MSI
Enable
*Disable
4.12.1 VERIFY CHECK DIGIT
Select one of the three calcul
ations to verify check digit
when de
coding barcodes. If
incorrect, the barcode will not be accepted.
*Single Modulo 10
Double Modulo 10
Modulo 10 & 11
4.12.2 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Last Digit Not
Transmitted
Both Digits
Transmitted
B
oth Digits
Not Transmitted
142
