60
Enter Setup
1660 Barcode Scanne
r
User Guide

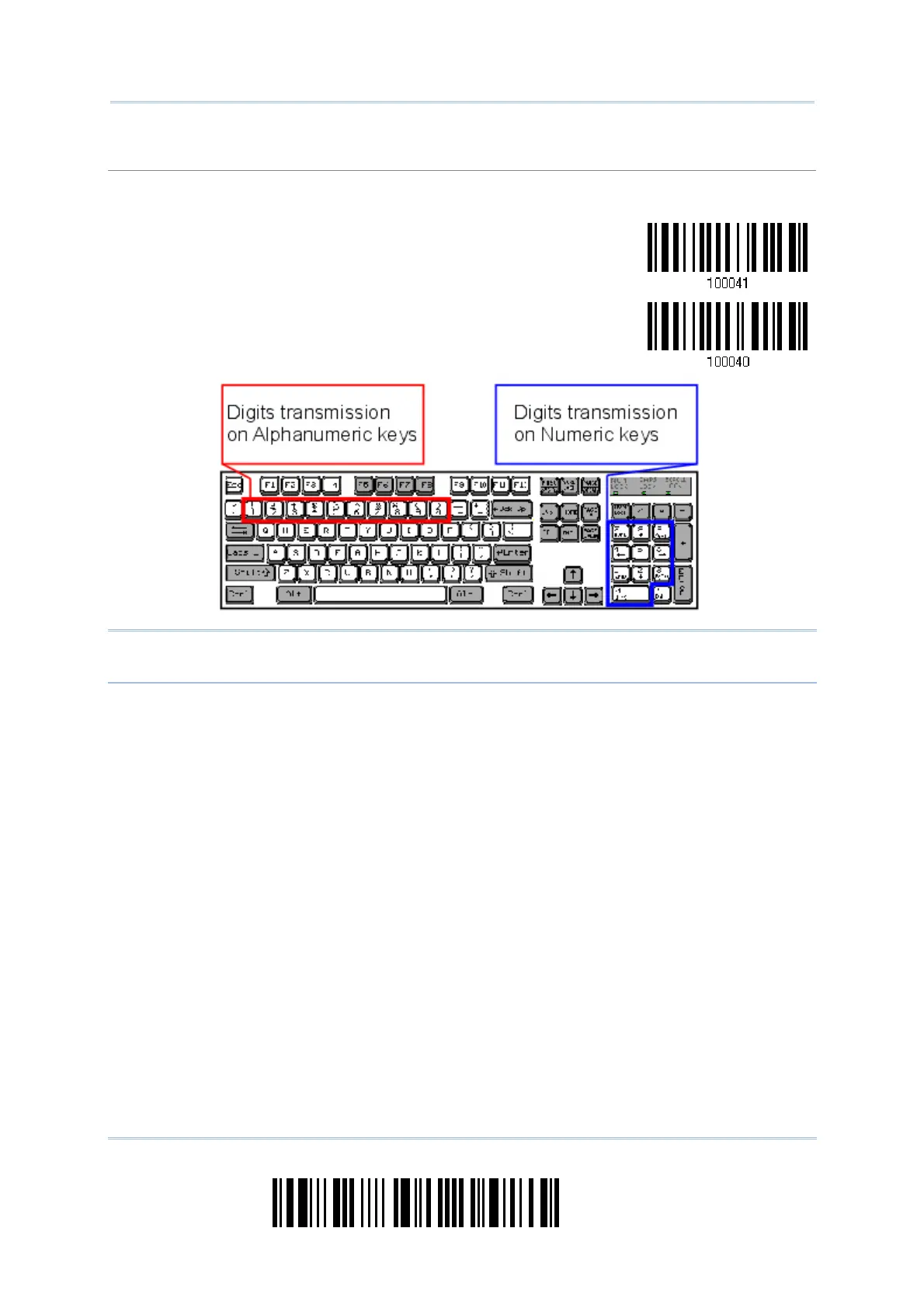

Digits Transmission
By default, the alphanumeric keypad is used for tr
ansmitting d
igits. Select
“Numeric Ke
ypad” if you
wish to use the keys on the numeric keypad.
Numeric Key
*Alphanumeric Key
Note: If you select “Numeric Keypad”, the Num Lock status of the p
hysical keyboard
should be “ON”. This setting
is not supported on PDAs.
73
