----- Supply network analyzer CVMk and CVMk-ITF ------ Page Nº 11

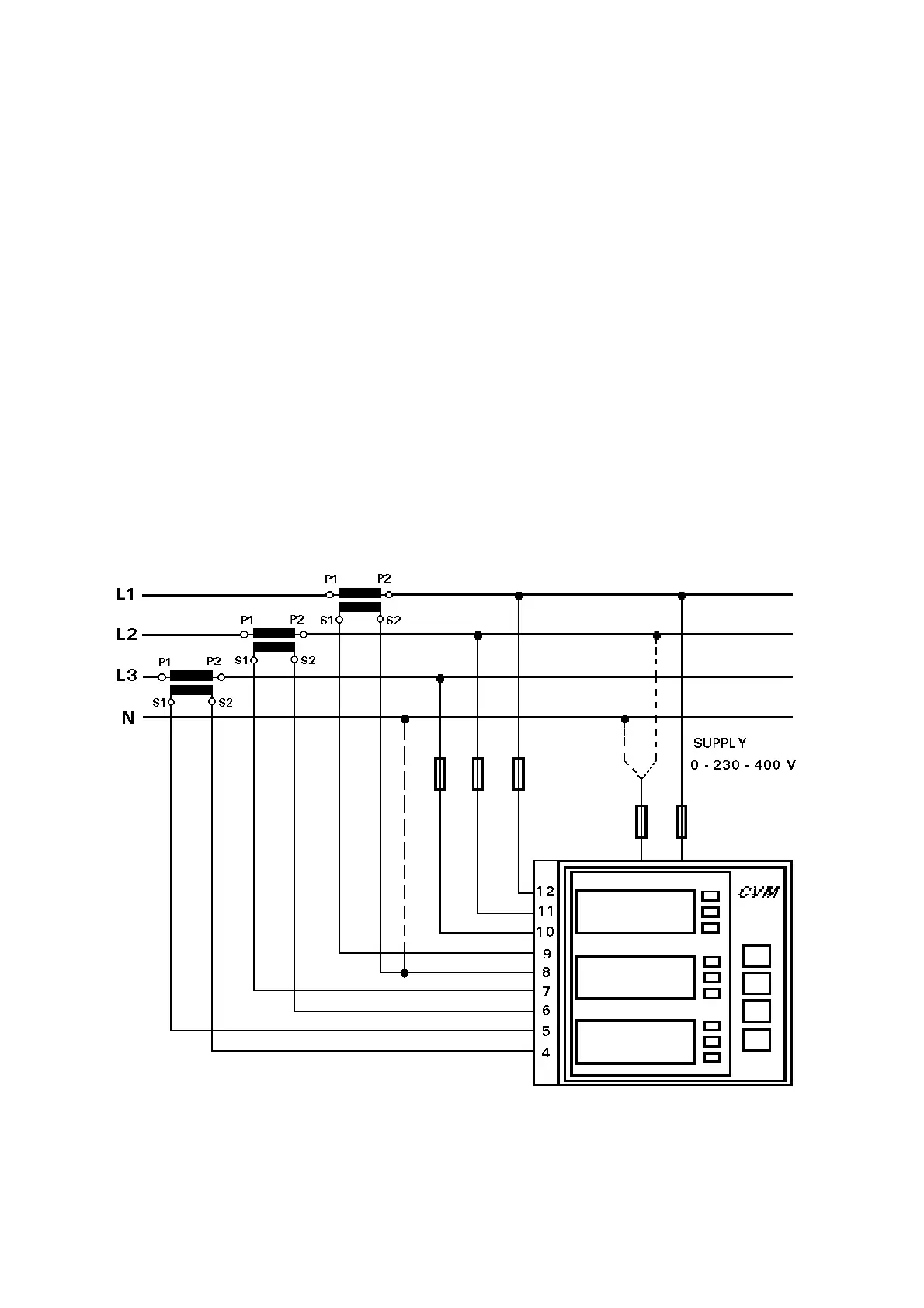

3.3. Connection drawing for the Standard CVMk (12 terminal model - NON
ITF)
Connection diagram of the CVMk for a low voltage, three phase network.
NOTE : FOR A HIGH VOLTAGE NETWORK IS ALWAYS ADVISABLE TO
INSTALL THE CVMk - ITF... (isolated current inputs).
