----- Supply network analyzer CVMk and CVMk-ITF ------ Page Nº 12
3.4. Connection drawing for the CVMk - ITF ( 13 terminal model - ITF )

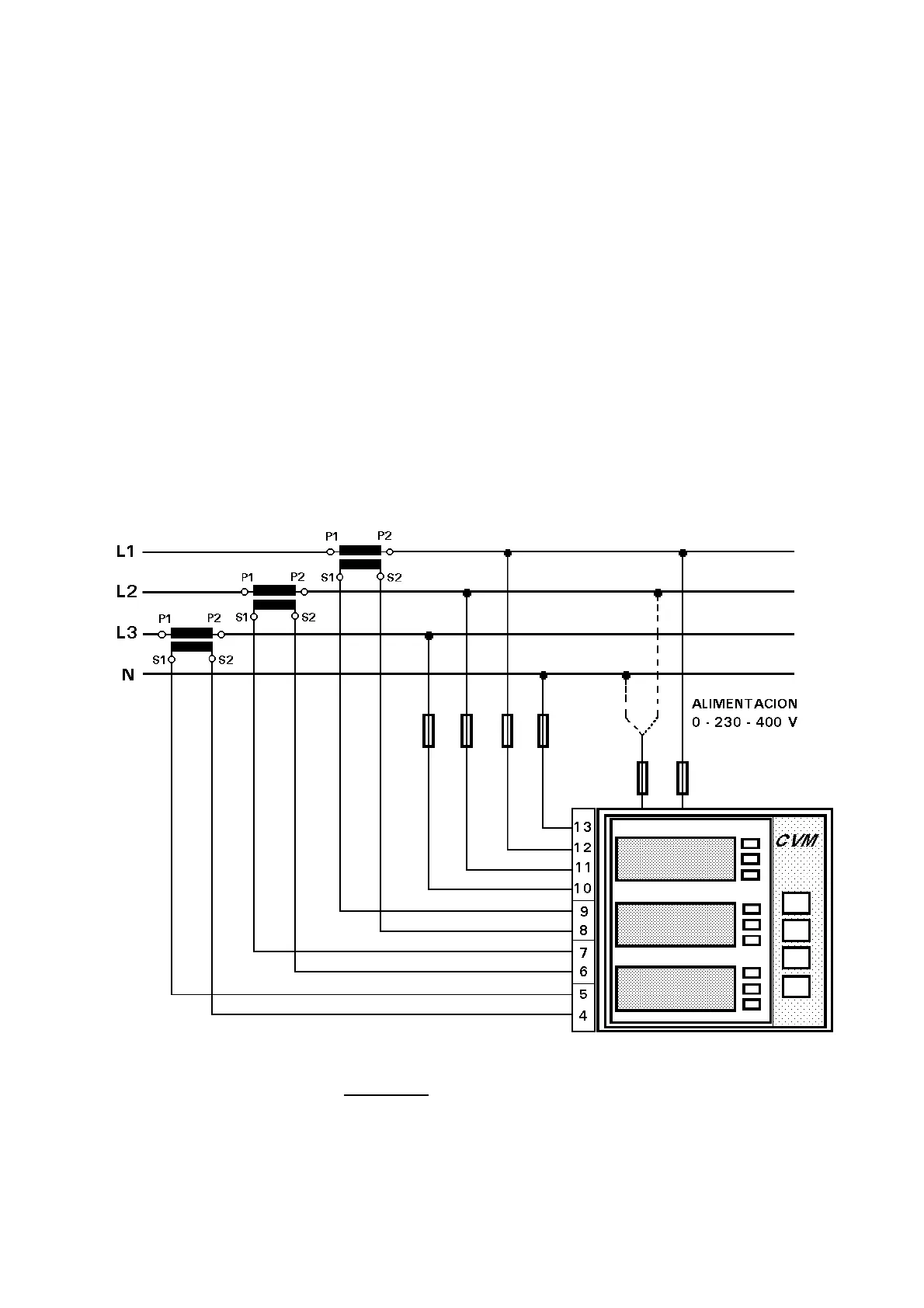

a) Connection diagram of the CVMk-ITF for a low voltage, three phase network:
IMPORTANT REMARK! If power = 0 is shown for any of the phases (codes 03, 09
and 15) and voltage and current are not zero for this phase, check out following
points:
- Assure that L1, L2 and L3 phases coincide in voltage and current.
- Correct polarity? Reverse the current transformer placed at this phase.
