12. APPENDIX

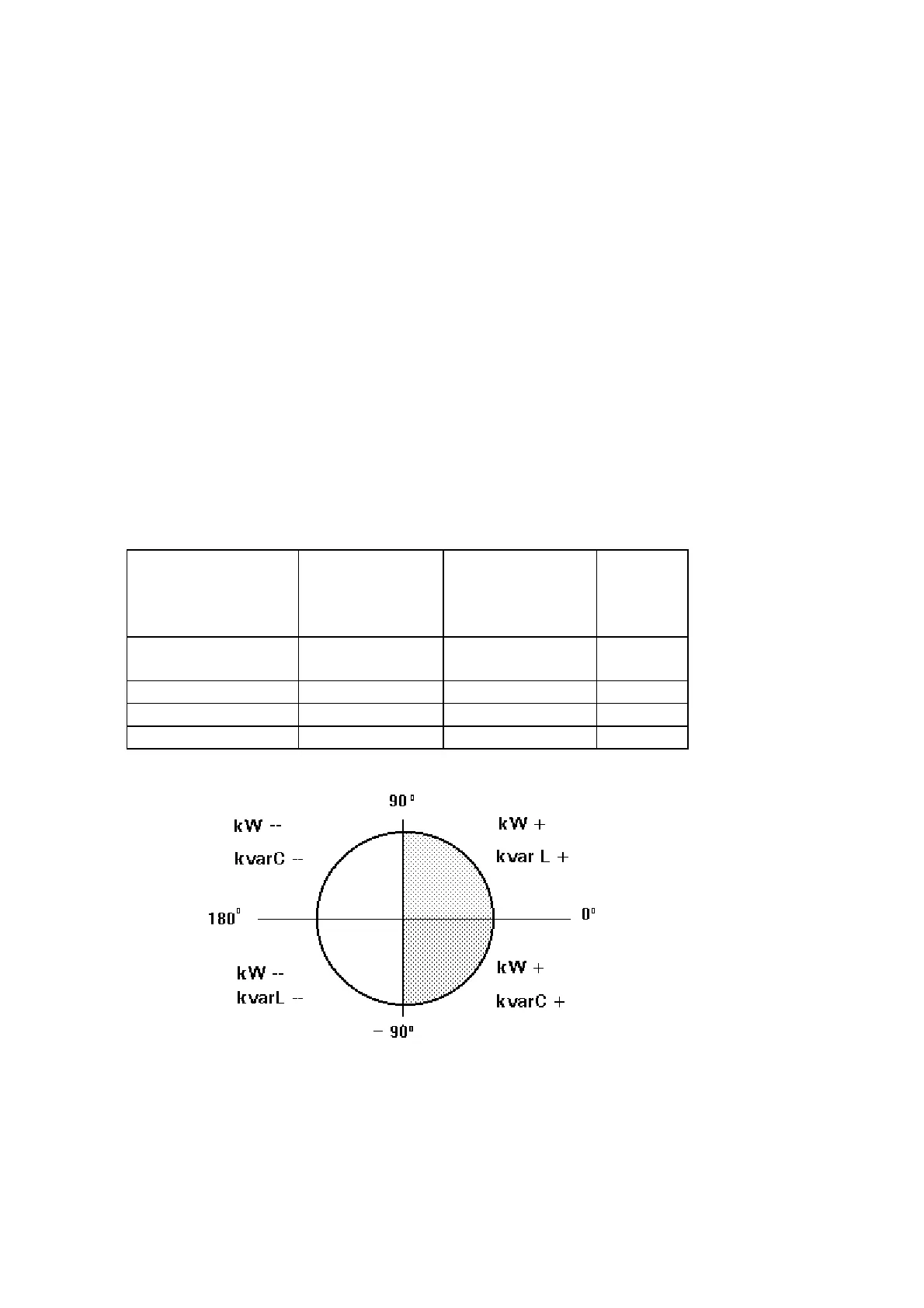

12.1. APPENDIX A: FOUR QUADRANTS OF THE CVMk-4C-
Example of the
phase difference
between voltage
and current
Active power
kW or kW.h
Reactive power
kvar or kvar.h
P.F.
30º kW + kvar L + +
300º kW + kvar C + --
210º kW -- kvar L -- +
120º kW -- kvar C -- --
