Chapter 7 Building the Second Row Table Assembly
Parts List

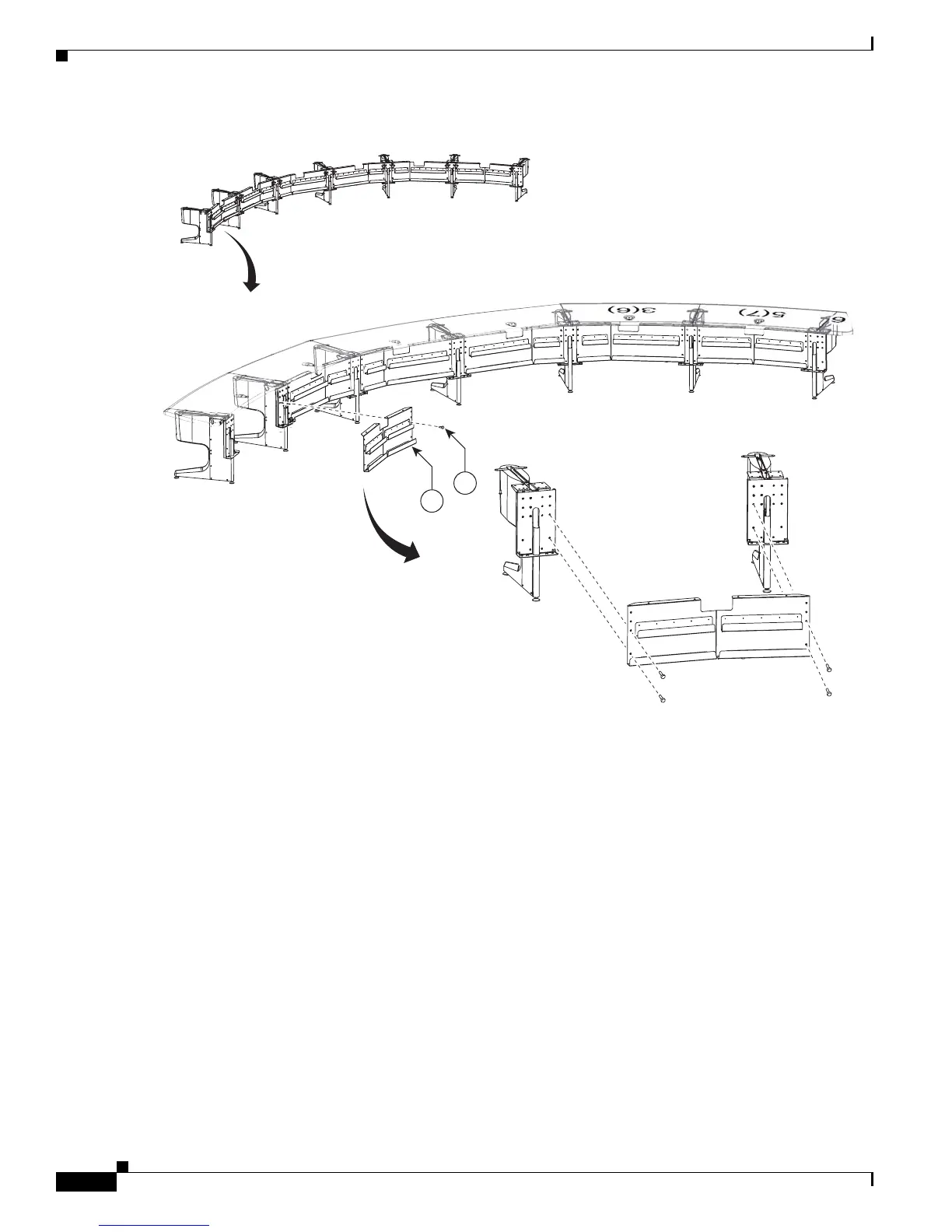

Figure 7-10 Section 5 (Right) Gutter Panels
Step 11 Assemble the I/O modules for the outside left and outside right molded foam bumpers.
The outside left and outside right molded foam bumpers only have one I/O module each. The inner
molded foam bumpers have two (see
Figure 7-12).
204108
35
10
3(6)
5(7)
66
7
6
5(2)
7
4(3)
1(5)
2(4)
