Chapter 7 Building the Second Row Table Assembly
Parts List

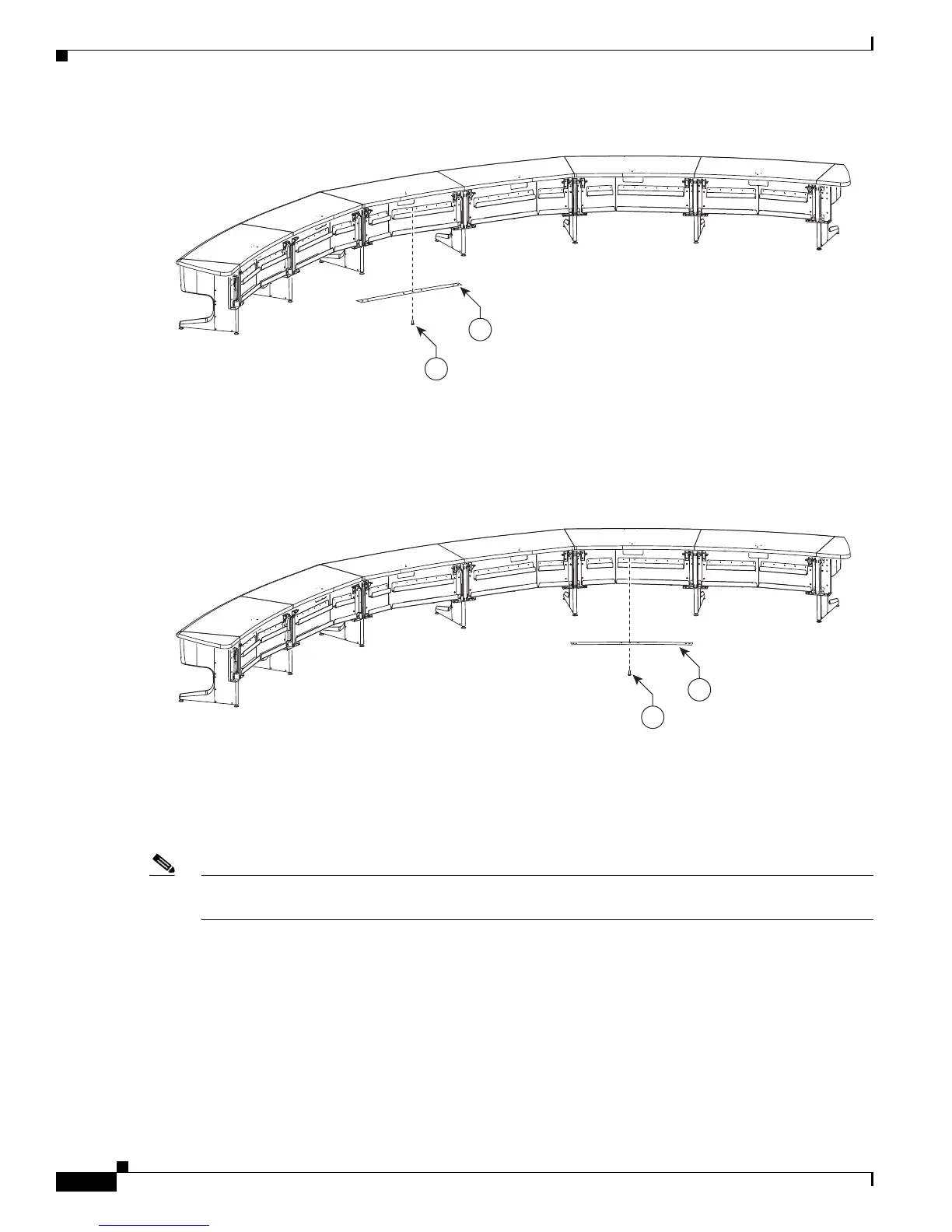

Figure 7-33 Section 2 (Section 4) Privacy Panel Alignment Bracket
Step 34 Attach the privacy panel alignment bracket to the underside of table section 3 (section 6).
Figure 7-34 Section 3 (Section 6) Privacy Panel Alignment Bracket
Step 35 Attach the privacy panel alignment bracket to the underside of table section 4 (section 3).
Note If you are building a Reduced Configuration table (four tabletops instead of six), continue to Step 38
after completing this step.
