7-36
Cisco TelePresence System 3200
OL-14521-01
Chapter 7 Building the Second Row Table Assembly
Parts List

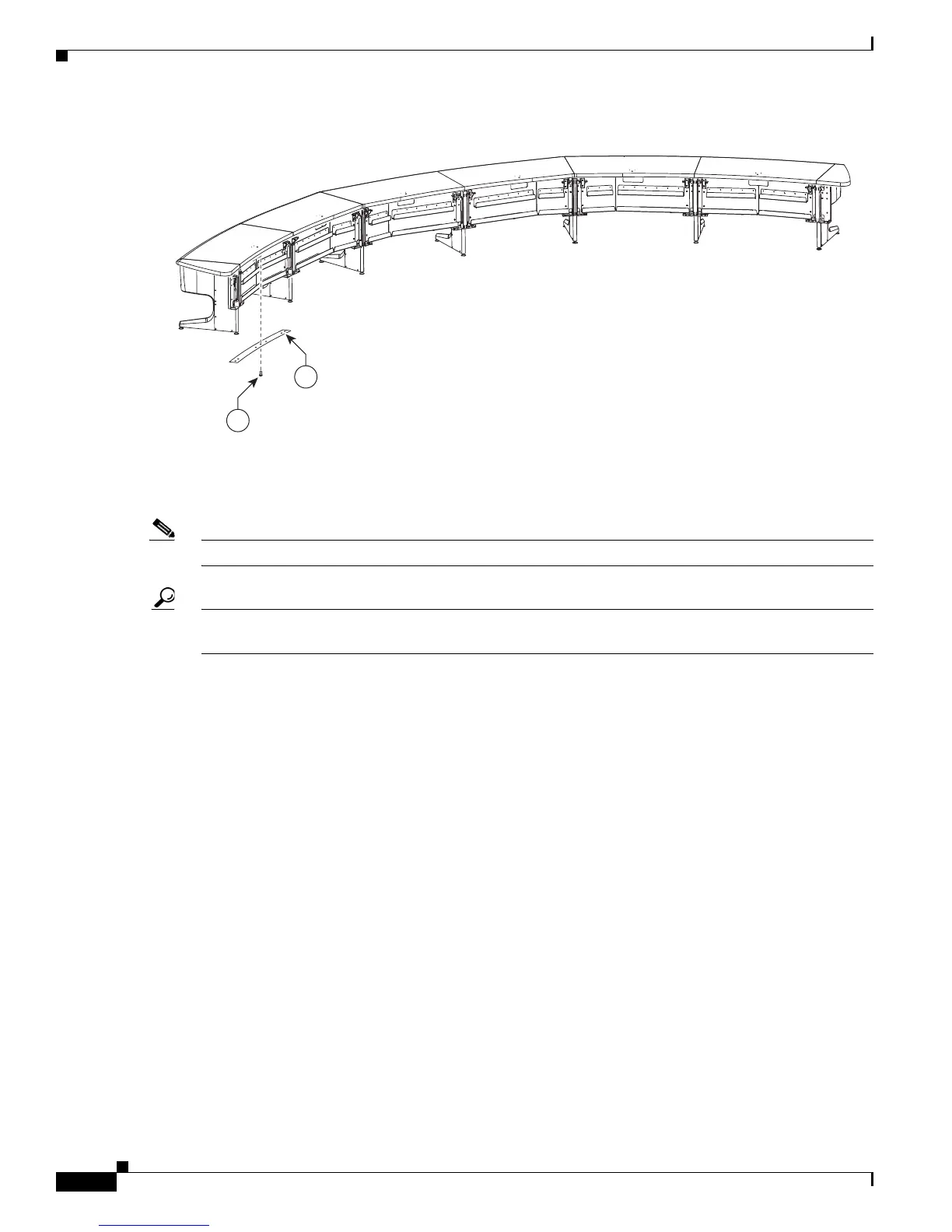

Figure 7-37 Right Section 5 (Section 2) Privacy Panel Alignment Bracket
Step 38 Attach one microphone to each table segment and attach the microphone extension cords to the
microphone cables. There are six microphones for the second row table (if you have a CTS
3200 reduced
configuration, there are four microphones for the second row table).
Note Steps for routing the microphone cables are in Chapter 9, “Routing Power and Signal Cables.”
Tip Label each microphone cable where it exits from the table. You attach the microphones to the
Audio/Video Extension Unit in Chapter 9, “Routing Power and Signal Cables.”
