Chapter 7 Building the Second Row Table Assembly
Parts List

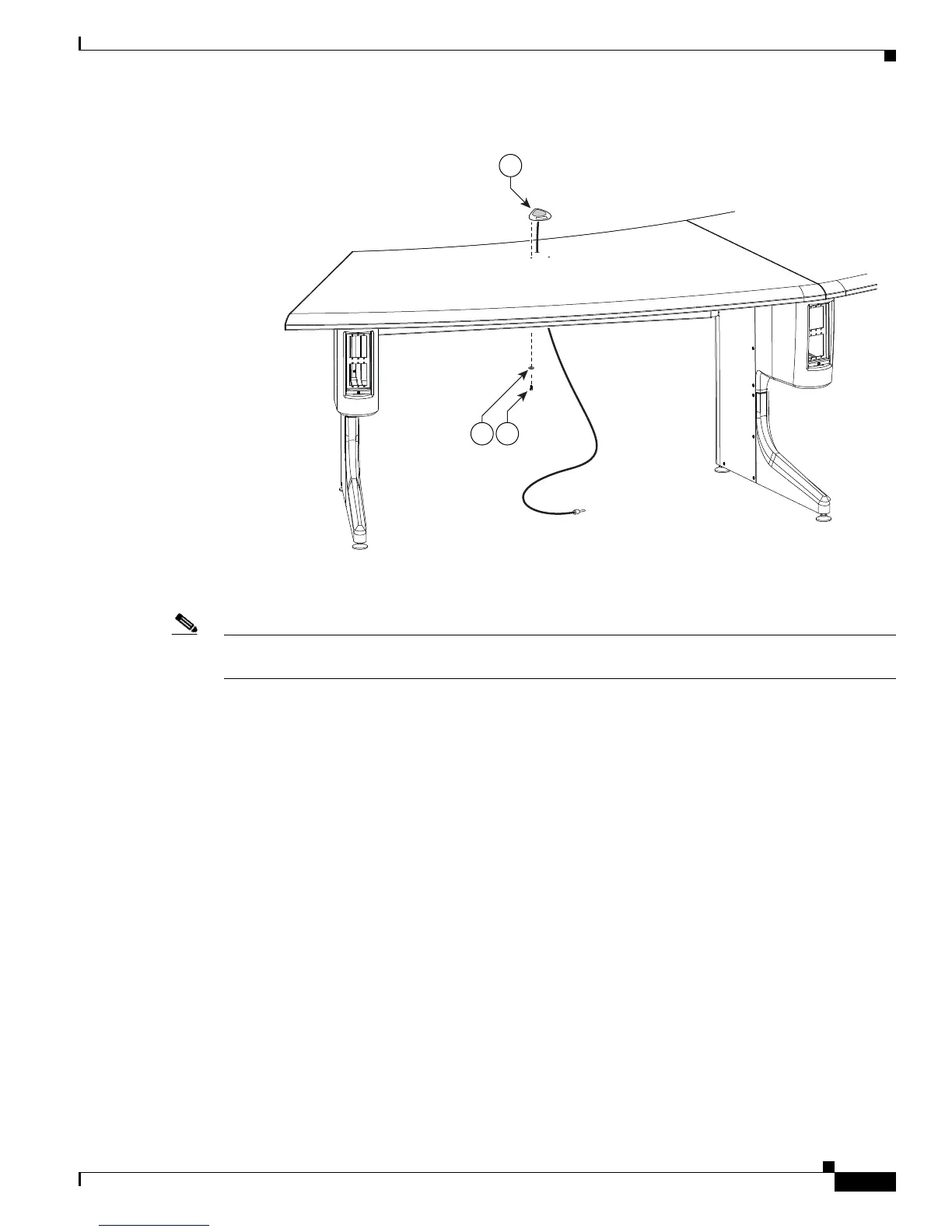

Figure 7-38 Microphone Assembly
Step 39 Lift the privacy panel for table section 1 (section 5) into position until it seats on the locating pins on the
table assembly; then, use the plastic knob screws to loosely attach the privacy panel from below.
Note Do not fully tighten the screws until you attach all privacy panels. You perform final spacing adjustments
after you attach the last panel.
