8-16
Cisco TelePresence System 3200
OL-14521-01
Chapter 8 Assembling the Remaining Cisco TelePresence Elements
Parts List
Step 13 Attach the audio/video extension unit to the rear of the display assembly.

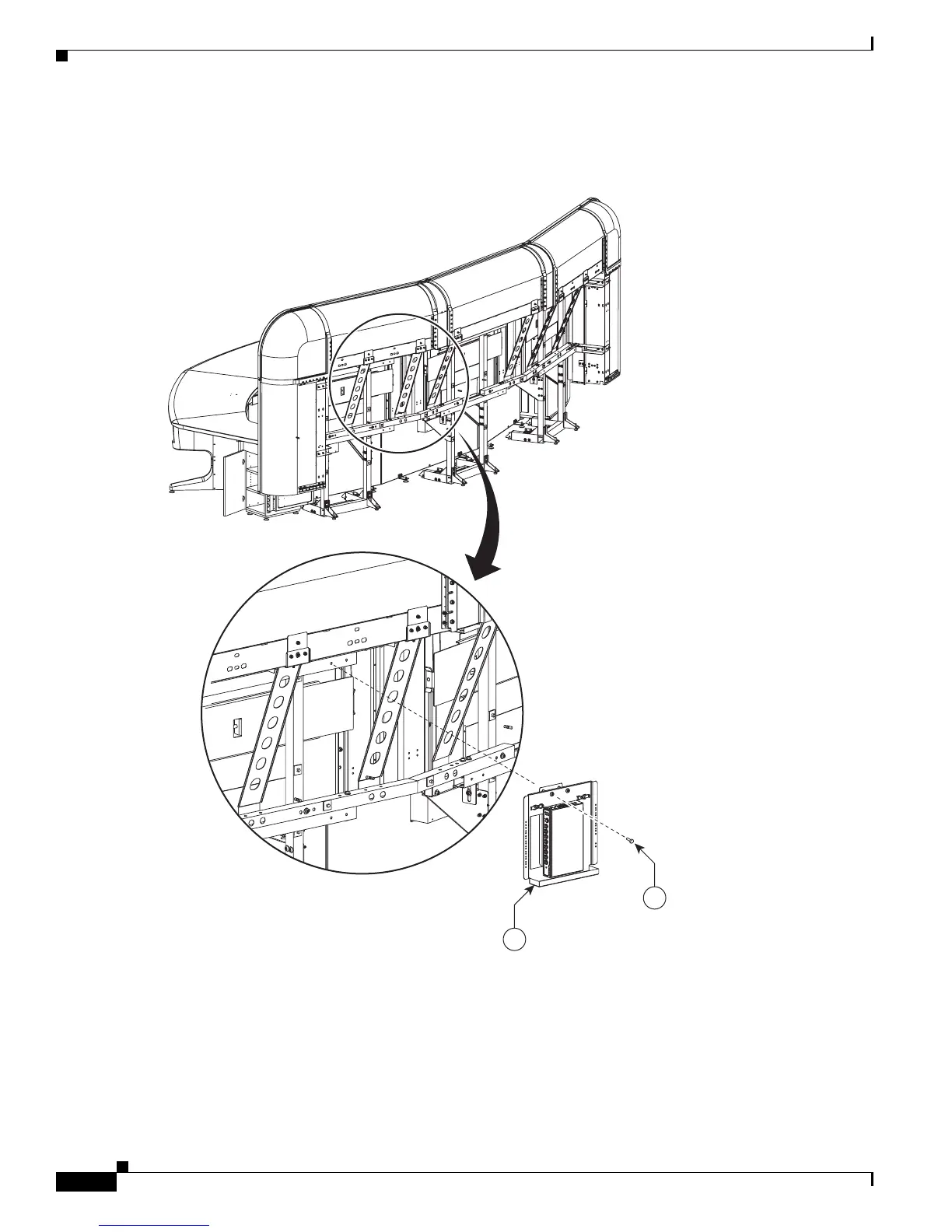

Figure 8-13 Audio/Video Extension Unit
35
1
204147
