Cisco TelePresence System 3200
OL-14521-01
Chapter 8 Assembling the Remaining Cisco TelePresence Elements
Parts List
Step 15 Assemble the Large Camera Target.
When you slide the Camera target into the frame, make sure the target is centered in the frame between
the vertical lines at the top and bottom of the target.

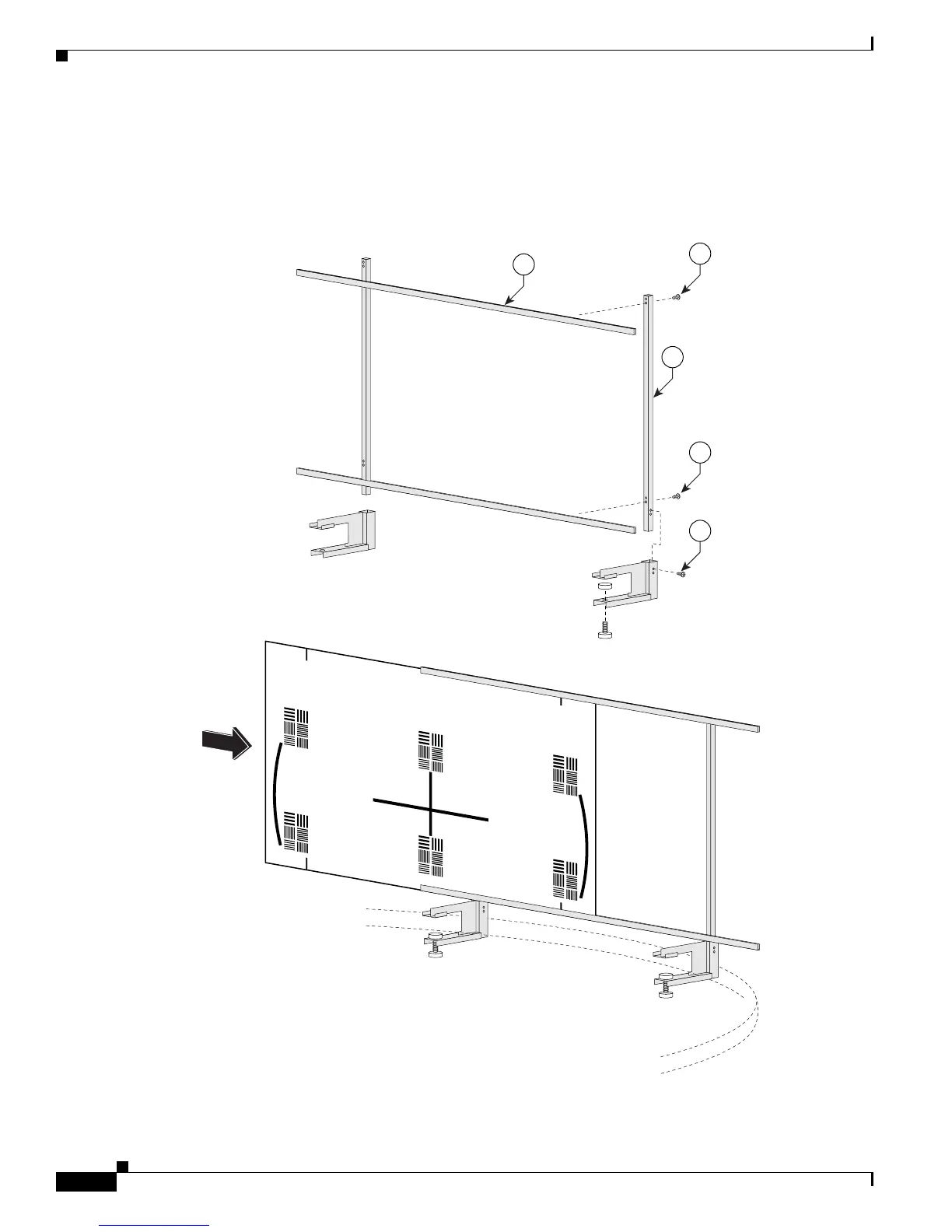

Figure 8-15 Camera Target Assembly
6
6
6
5
4
201192
