Chapter 9 Routing Power and Signal Cables
Power Requirements for the Cisco TelePresence 3200
Step 4 Route the power cables for the first row table assembly.

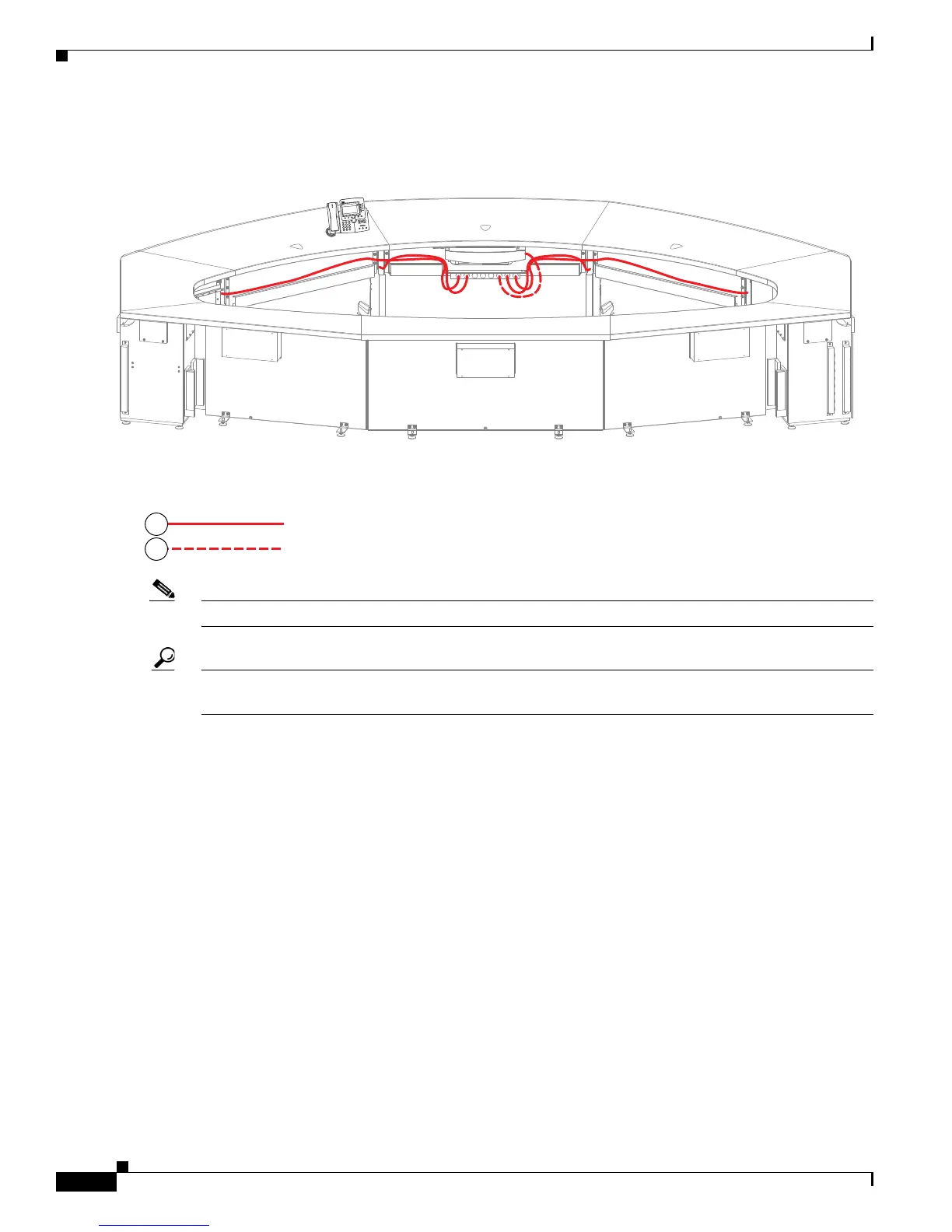

Figure 9-4 First Row Table Assembly Cable Routing
Note The six jumper cords from the I/O modules in the table legs route to the center PDU.
Tip Before plugging the Table leg jumper cords into the Table PDU, label each one. For example, Outer Left
Power, Inner Right Power.
