Cisco TelePresence System 3200
OL-14521-01
Chapter 9 Routing Power and Signal Cables
Power Requirements for the Cisco TelePresence 3200

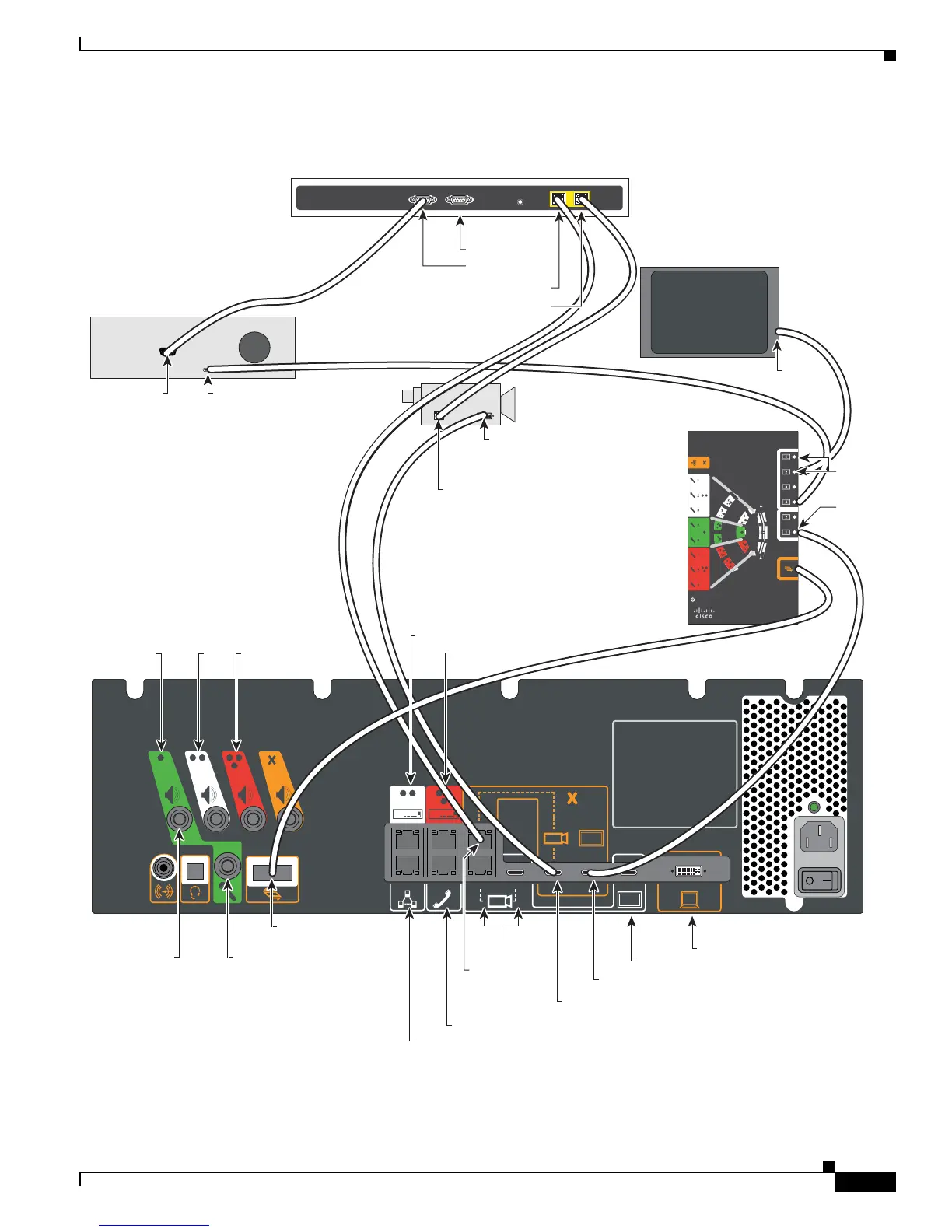

Figure 9-20 Cabling Diagram: CTS 3200 Installations with an External Display and Document Camera
205784
12
12
10/100 NETW ORK PO RTSRESETSERIAL PO RTS
Document
Camera
Signal
Document
Camera
Video Out
Primary Codec
Audio/
Video
Expansion
Unit
Projector
External Display
(Optional)
Document
Camera
(Optional)
Auxiliary Video Out
Camera
IP Phone
Auxiliary
network
port
Network
Left Right
First Row
Center Microphone
Document Camera
Video In
Left Codec
Right Codec
Center
Display
Auxiliary Video In
Video In
Video
In
Video
Out
Video
In
Audio Expansion
Unit
Speaker
Auxiliary Control Unit
Serial 2
Serial 1
Ethernet 1
Ethernet 2
Serial
