Chapter 2 Building the Display Assembly
Parts List
Step 8 Attach the upper and lower Support crossbars to the center Display structure.

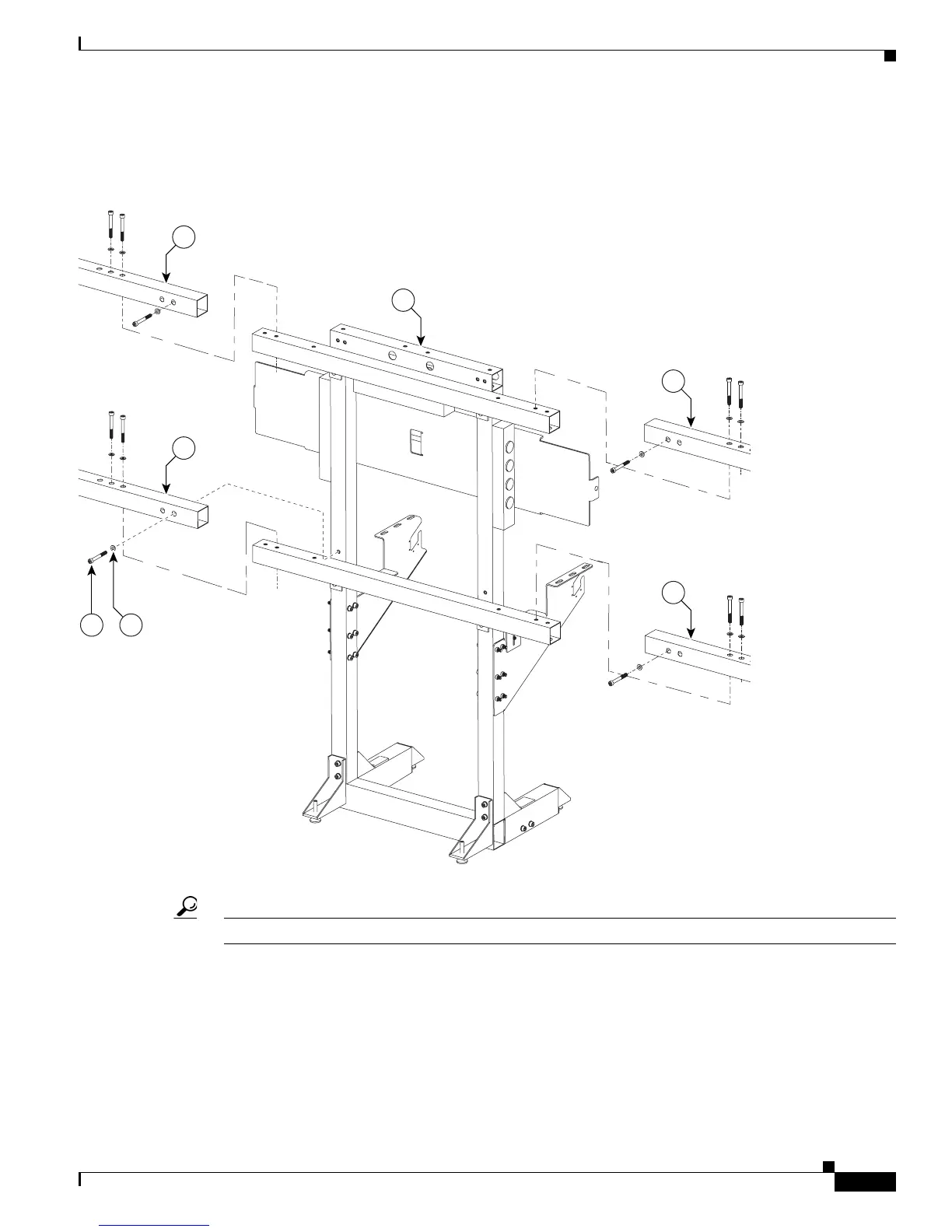

Figure 2-7 Upper and Lower Support crossbars
Tip Use the screw holes nearest the ends of the Support crossbars.
