Chapter 3 Mounting and Leveling the Plasma Displays
Purpose of Leveling the Plasma displays

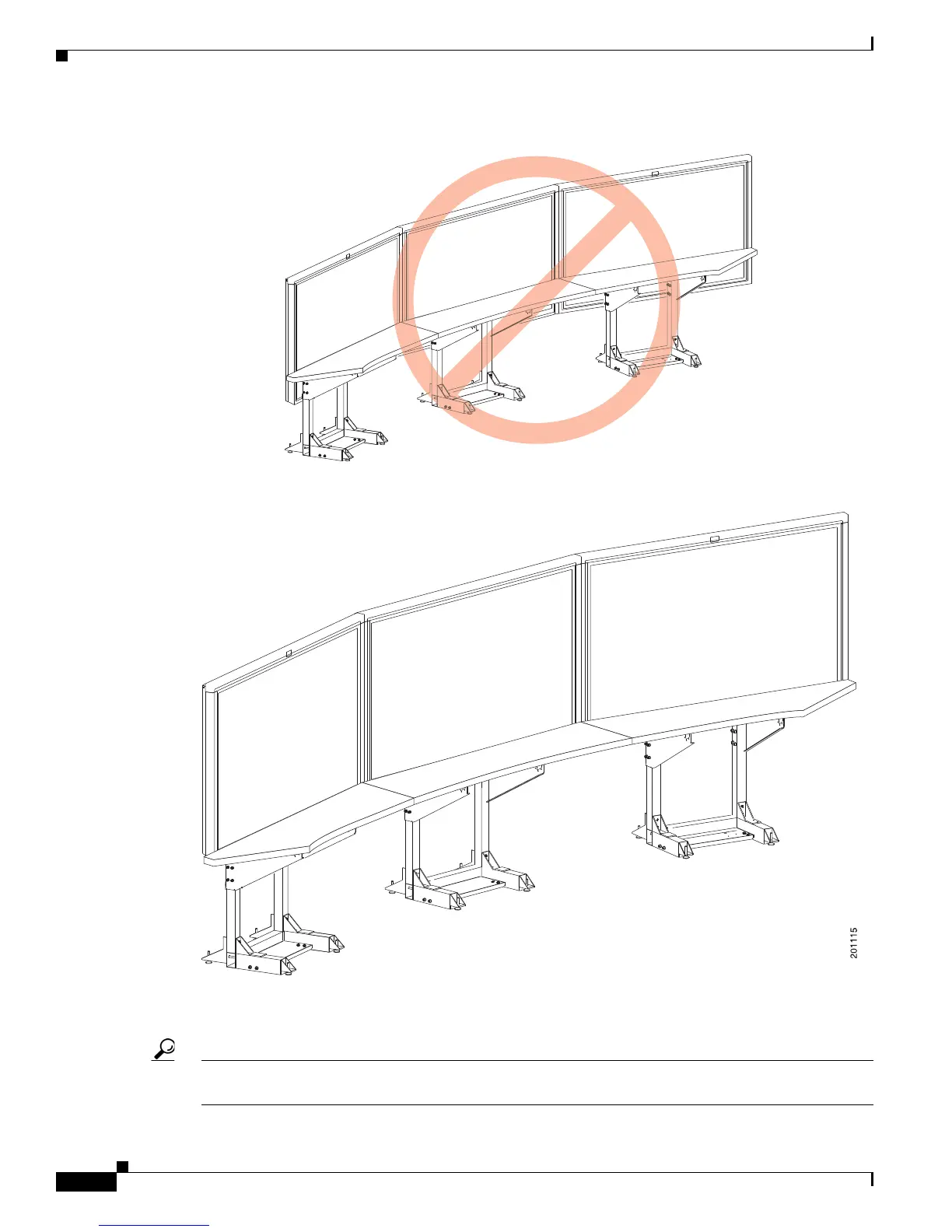

Figure 3-5 Make sure no lines of resolution are blocked by the Display shelves
Step 6
Use the Plasma display Leveling feet to level the Plasma displays along the X axis.
Use the Display tilt brackets to level the Plasma displays along the Y axis.
Tip You should level the center Plasma display first. Then align the left and right Plasma displays to the
center display.
