5-8
Cisco TelePresence System 3200
OL-14521-01
Chapter 5 Building the Lighting Assembly
Parts List
Step 6 Attach the two Reflector bottom spacers to join the three Reflector bottom trays.

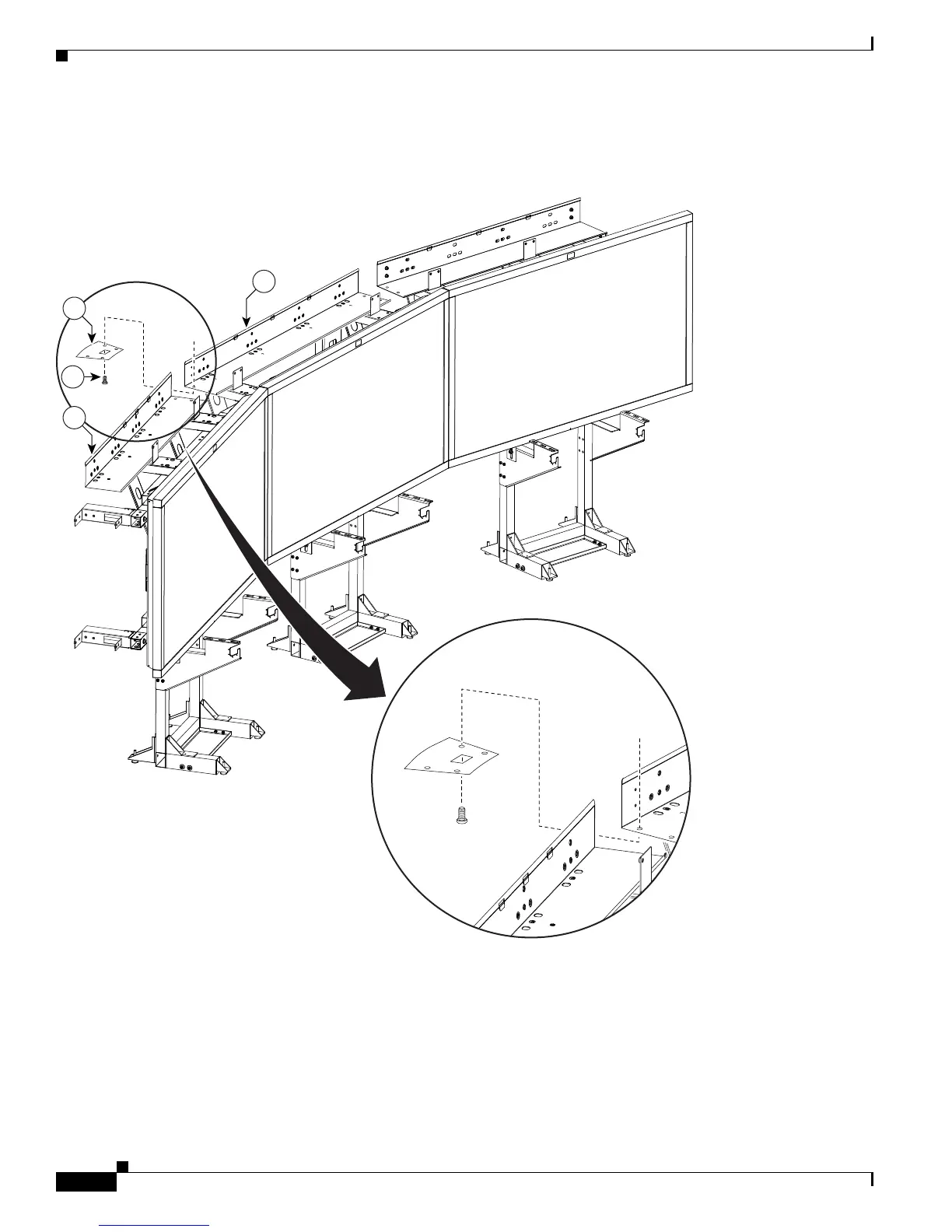

Figure 5-6 Two Reflector bottom spacers
201130
13
14
16
27
