Chapter 5 Building the Lighting Assembly
Parts List
Step 7 Attach the left and right (vertical) Reflector Bottom ends to the End Structure brackets and attach the
compliance sticker to the left reflector bottom end.

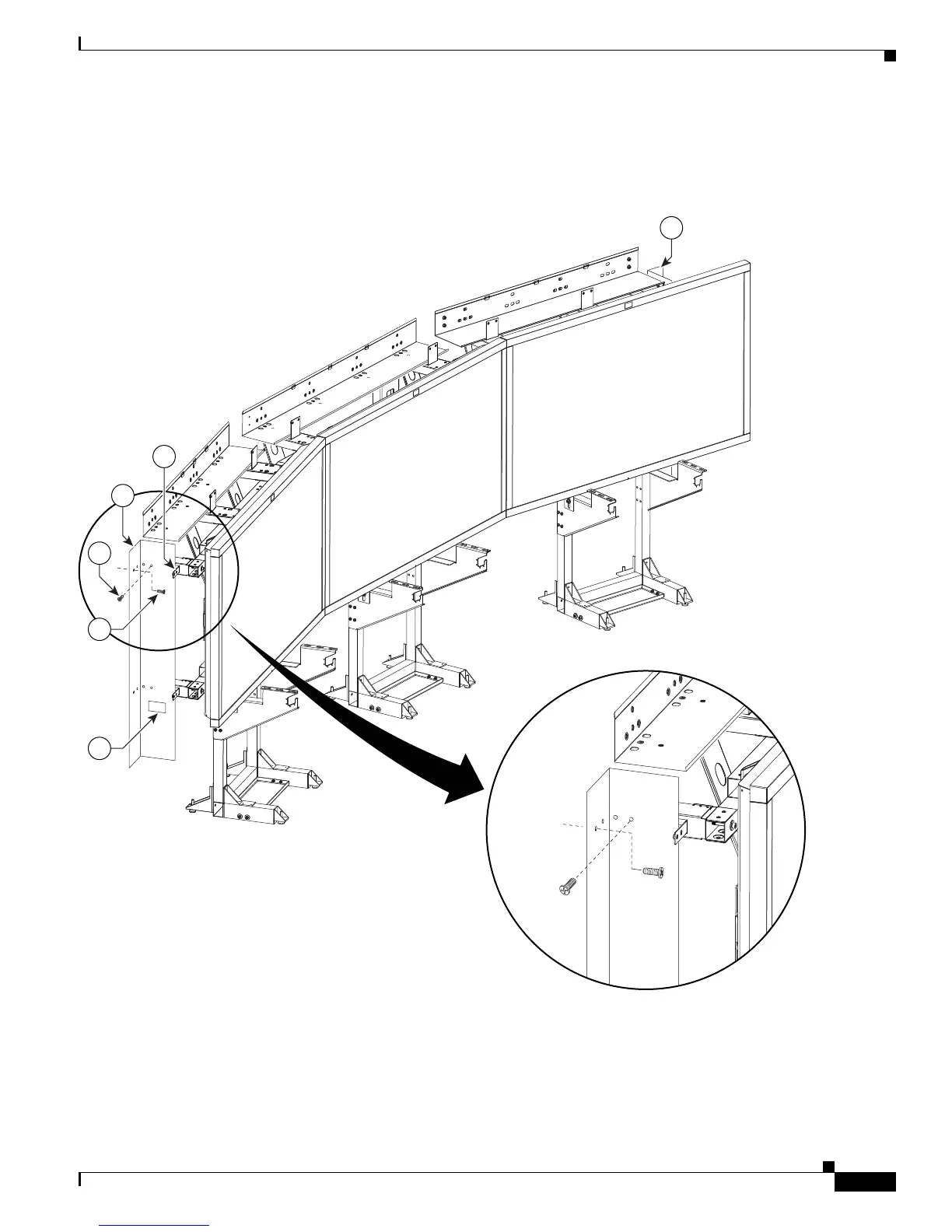

Figure 5-7 Left and Right (vertical) Reflector Bottom ends
27
15
33
3
27
30
