5-10
Cisco TelePresence System 3200
OL-14521-01
Chapter 5 Building the Lighting Assembly
Parts List

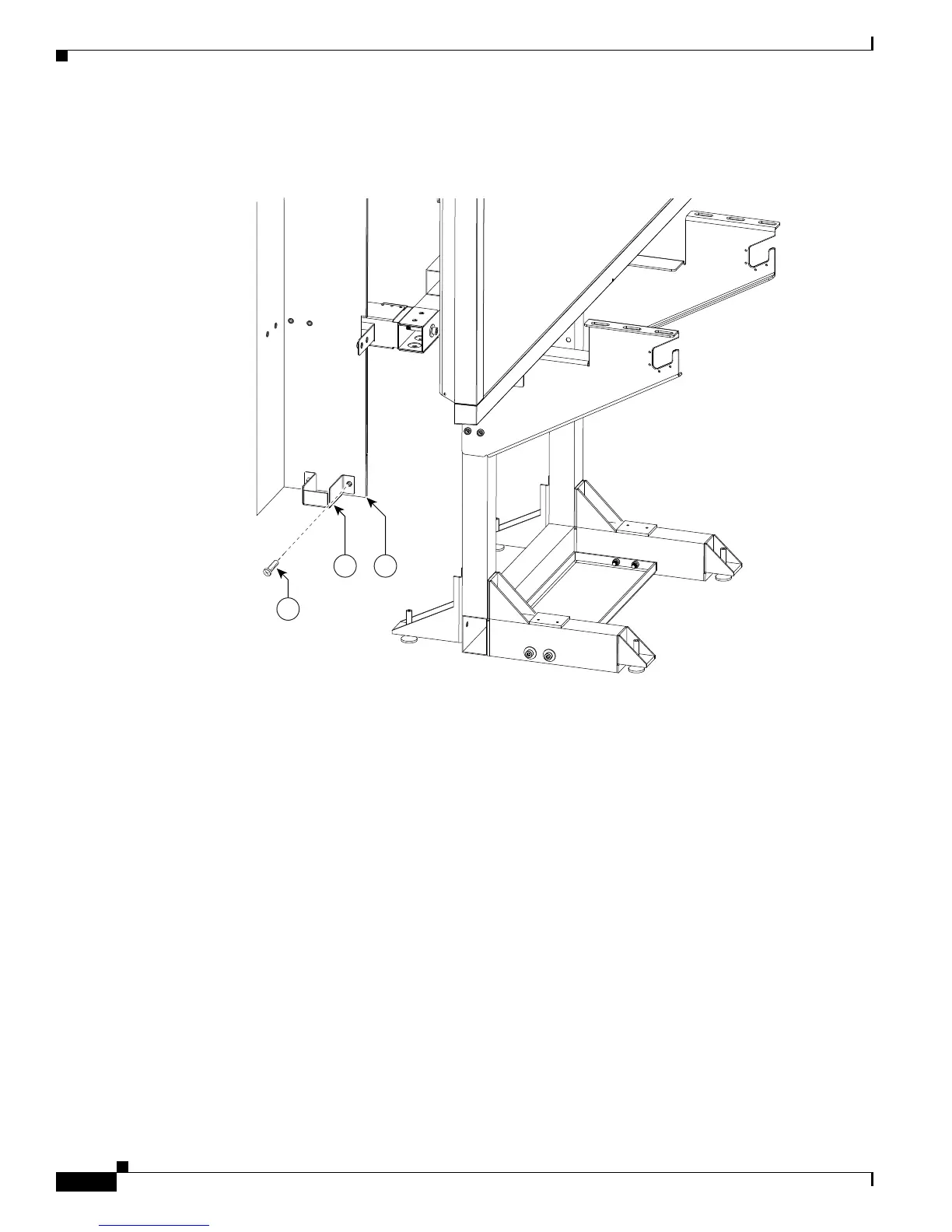

Step 8 Attach the Light Cup bracket to the left and right (vertical) Reflector Bottom ends.
Figure 5-8 Light Cup bracket
23
27
15
201132
