Chapter 5 Building the Lighting Assembly
Parts List
Step 10 Attach the left and right 4-foot Side Light fixtures to the left and right (vertical) Reflector Bottom ends.

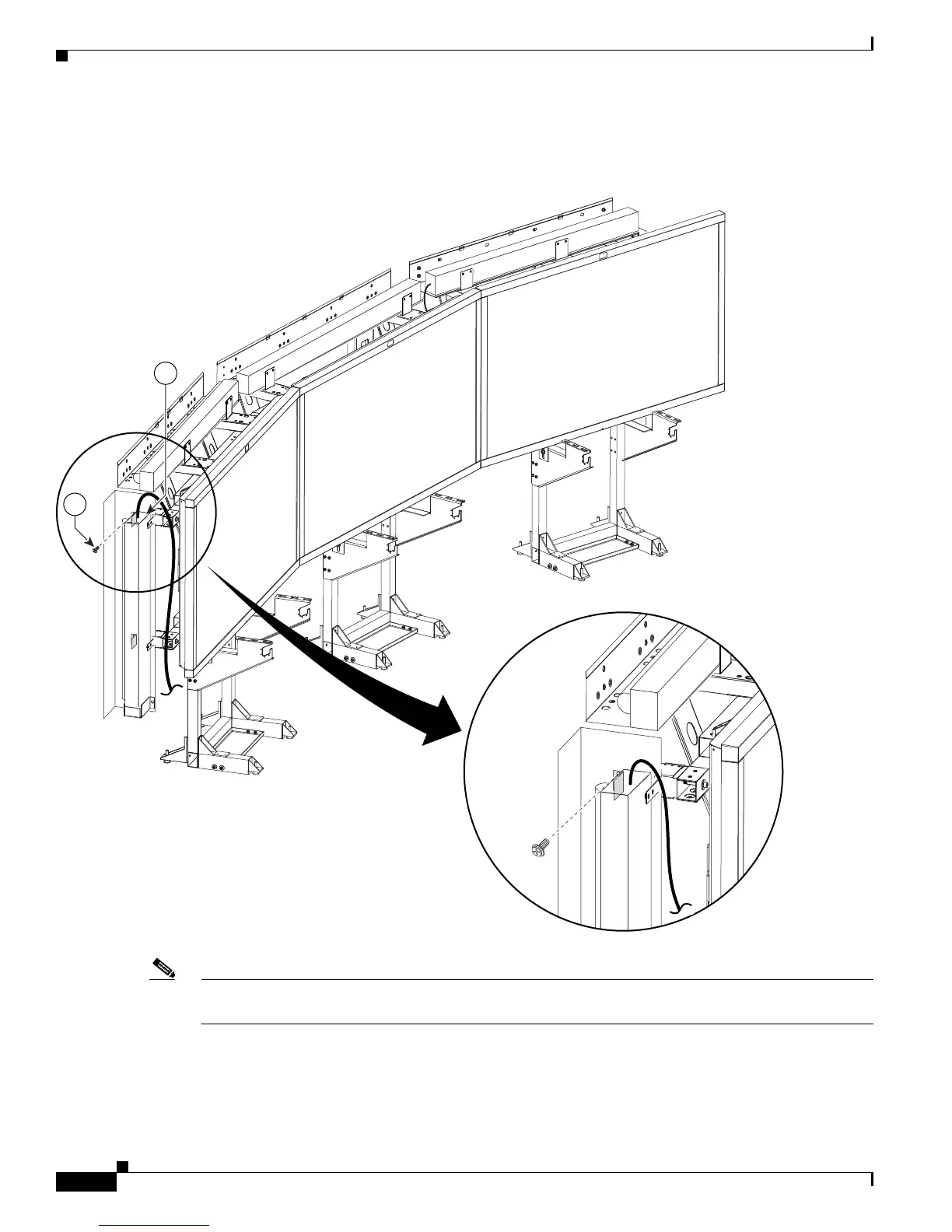

Figure 5-10 Left and Right 4-foot Side Light fixtures
Note The power cords for the Side Light fixtures should extend from the top through the Light Cup bracket
(Figure 5-8).
