Chapter 6 Building the First Row Table Assembly
Parts List

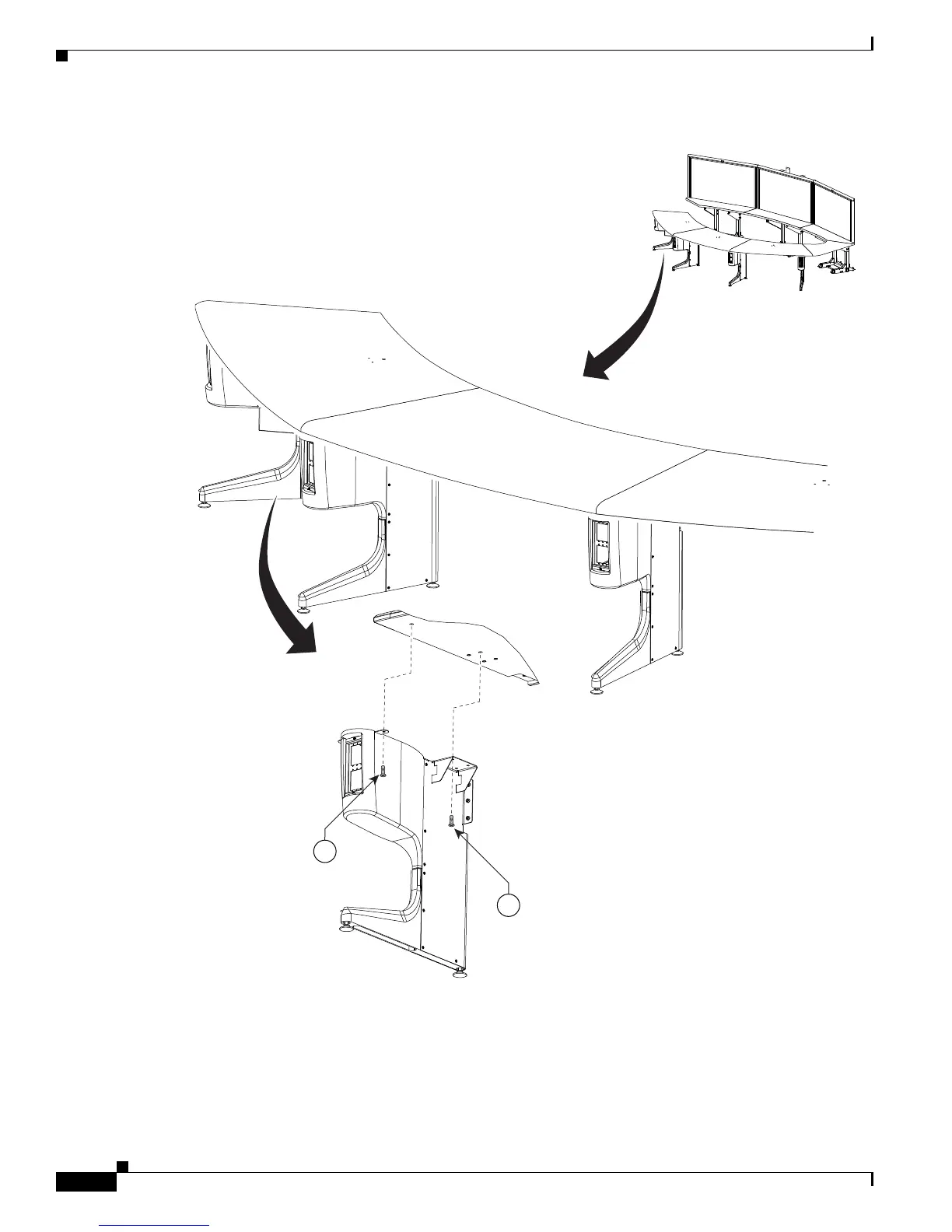

Figure 6-12 left Most Table Leg
Step 13 Attach one microphone to the left, right and center first row table segments.
The center microphone cable for the first row table must be seated in the cable channel on the underside
of the center table segment in order to properly install the projector bracket. You can use tape to secure
it in place.
