Chapter 6 Building the First Row Table Assembly
Parts List
Note Steps for routing and connecting the microphone extension cables from the audio/video extension unit
and codec to the microphones are in Chapter 9, “Routing Power and Signal Cables.”

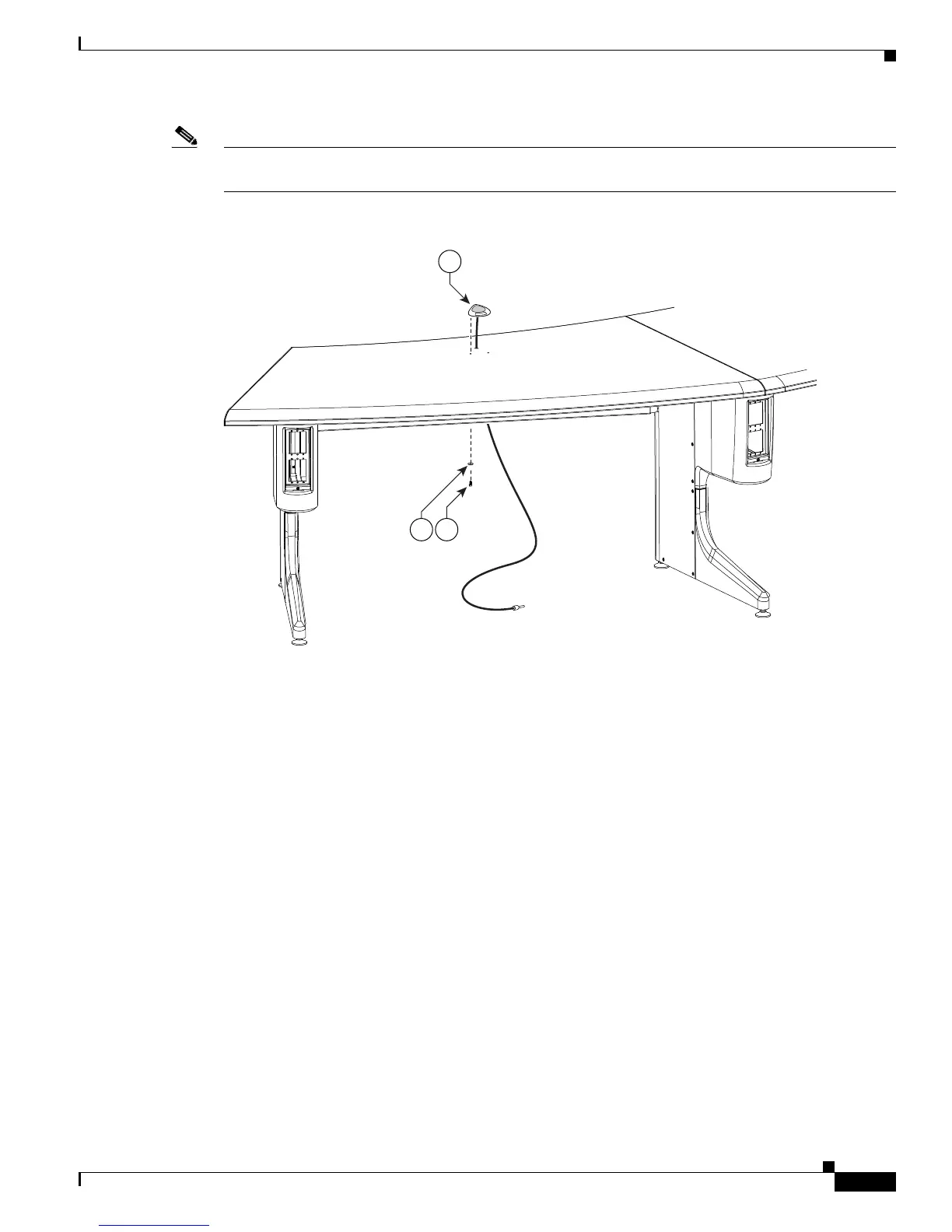

Figure 6-13 Microphone Assembly
Step 14 Attach the table door to the tabletop sections and attach the “please close” label to the underside of the
table door.
