Cisco Unified IP Phone 7960G/7940G Administration Guide for Cisco Unified Communications Manager 7.0 (SIP)
OL-15499-01
Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding the Cisco Unified IP Phone 7960G and 7940G
4

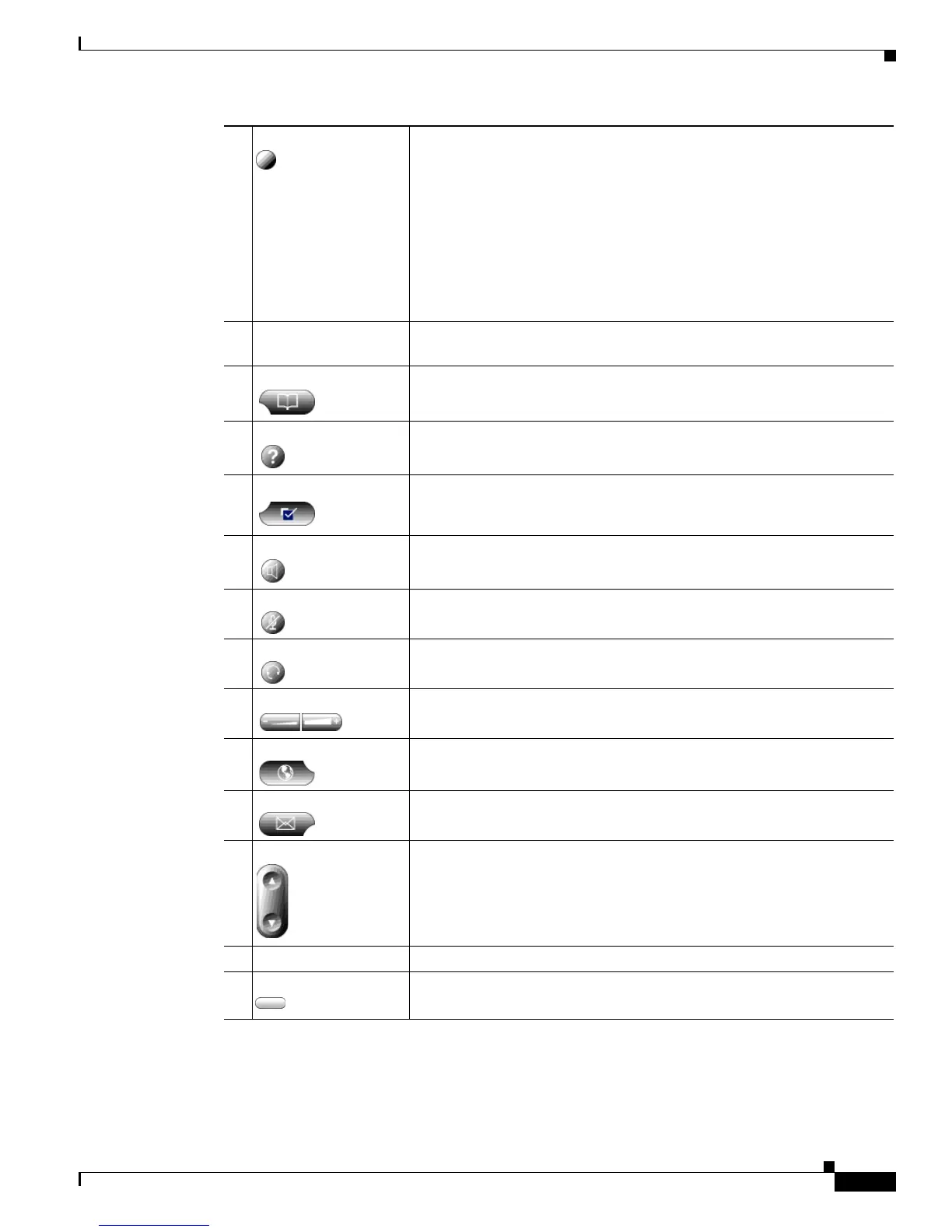

Programmable buttons Depending on configuration, programmable buttons provide access to:
• Phone lines (line buttons)
• Speed-dial numbers (speed-dial buttons, including the BLF
speed-dial feature)
• Web-based services (for example, a Personal Address Book button)
• Phone features (for example, a Privacy button)
The Cisco Unified IP Phone 7960G has six programmable buttons and the
7940G has two.
5
Footstand adjustment
button
Allows you to adjust the angle of the phone base.
6
Directories button Opens/closes the Directories menu. Use it to access call logs and
directories.
7
? button Provides access to online Help
8
Settings button Opens/closes the Settings menu.
9
Speaker button Toggles the speakerphone on or off.
10
Mute button Toggles the Mute feature on or off.
11
Headset button Toggles the headset on or off.
12
Volume button Controls the handset, headset, and speakerphone volume (off-hook) and
the ringer volume (on-hook; adjusts contrast settings.
13
Services button Opens/closes the Services menu.
14
Messages button Auto-dials your voice message service (varies by service).
15
Navigation button Allows you to scroll through menus and highlight items. When the phone
is on-hook, displays phone numbers from your Placed Calls log.
16
Keypad Allows you to dial phone numbers, enter letters, and choose menu items.
17
Softkey buttons Each activates a softkey option (displayed on your touchscreen).
