Chapter 3 Setting Up the Cisco Unified IP Phone
Verifying the Phone Startup Process
Step 4 Hang the phone on the wall.

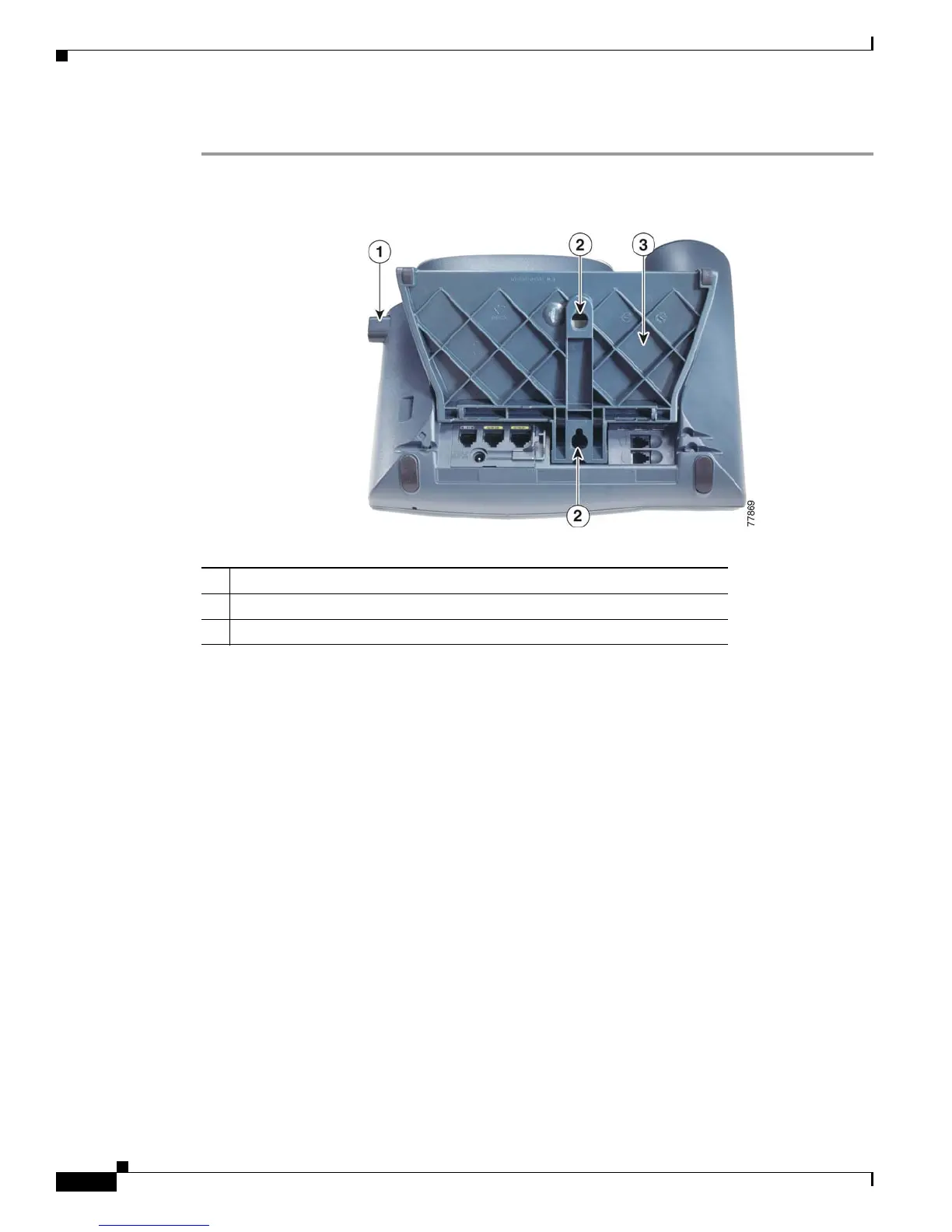

Figure 3-2 Parts Used in Wall Mounting the Cisco Unified IP Phone
Verifying the Phone Startup Process
After the Cisco Unified IP Phone has power connected to it, the phone begins its startup process by
cycling through the following steps.
1. These buttons flash on and off in sequence:
–
Headset
–
Mute
–
Speaker
2. The LCD screen displays the Universal Application Loader screen.
3. The LCD screen displays a series of messages that inform you of various activities that the phone
performs as it starts up. If the phone upgrades its firmware as part of the startup process, additional
messages will inform you about this process.
4. The main LCD screen displays this information:
–
Current date and time
–
Primary directory number
–
Softkeys
If the phone successfully passes through these stages, it has started up properly. If the phone does not
start up properly, see the
“Resolving Startup Problems” section on page 7-1.
1 Footstand adjustment button—Raises and lowers adjustment plate
2 Wall mounting screw holes
3 Adjustment plate—Raises and lowers phone vertically
