3-6
Cisco Unified IP Phone 7960G/7940G Administration Guide for Cisco Unified Communications Manager 7.0 (SIP)
OL-15499-01
Chapter 3 Setting Up the Cisco Unified IP Phone
Installing the Cisco Unified IP Phone

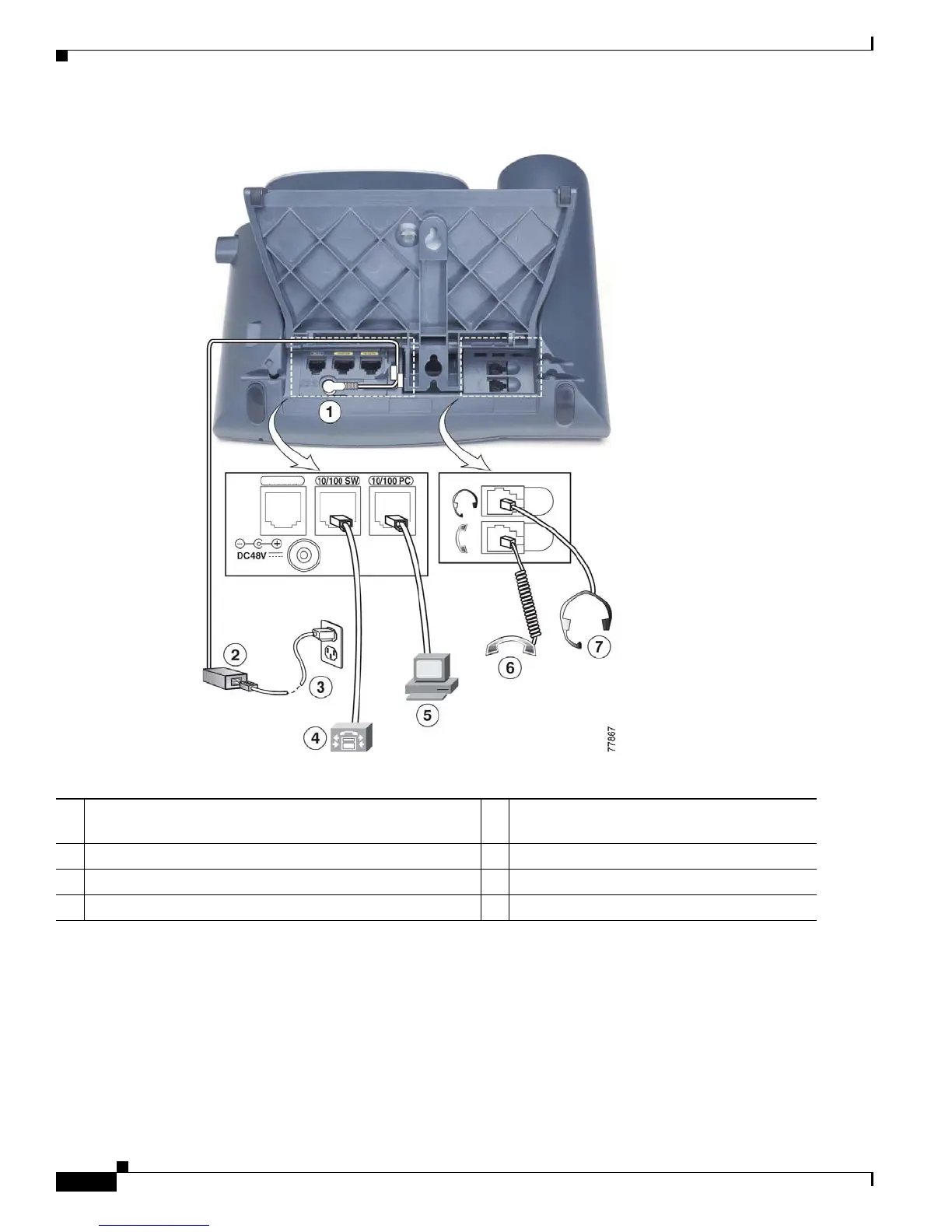

Figure 3-1 Cisco Unified IP Phone 7960G and 7940G Cable Connections
Related Topics
• Adjusting the Placement of the Cisco Unified IP Phone, page 3-7
• Verifying the Phone Startup Process, page 3-8
• Configuring Startup Network Settings, page 3-9
• Configuring Security on the Cisco Unified IP Phone, page 3-9
1
DC adaptor port (DC48V) for phones not provided with
inline power
5
Access port (10/100 PC) for connecting the
phone to a computer
2 AC-to-DC power supply 6 Handset port
3 AC power cord 7 Headset port
4 Network port (10/100 SW) for connecting to the network
AUX
