3-37
Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series

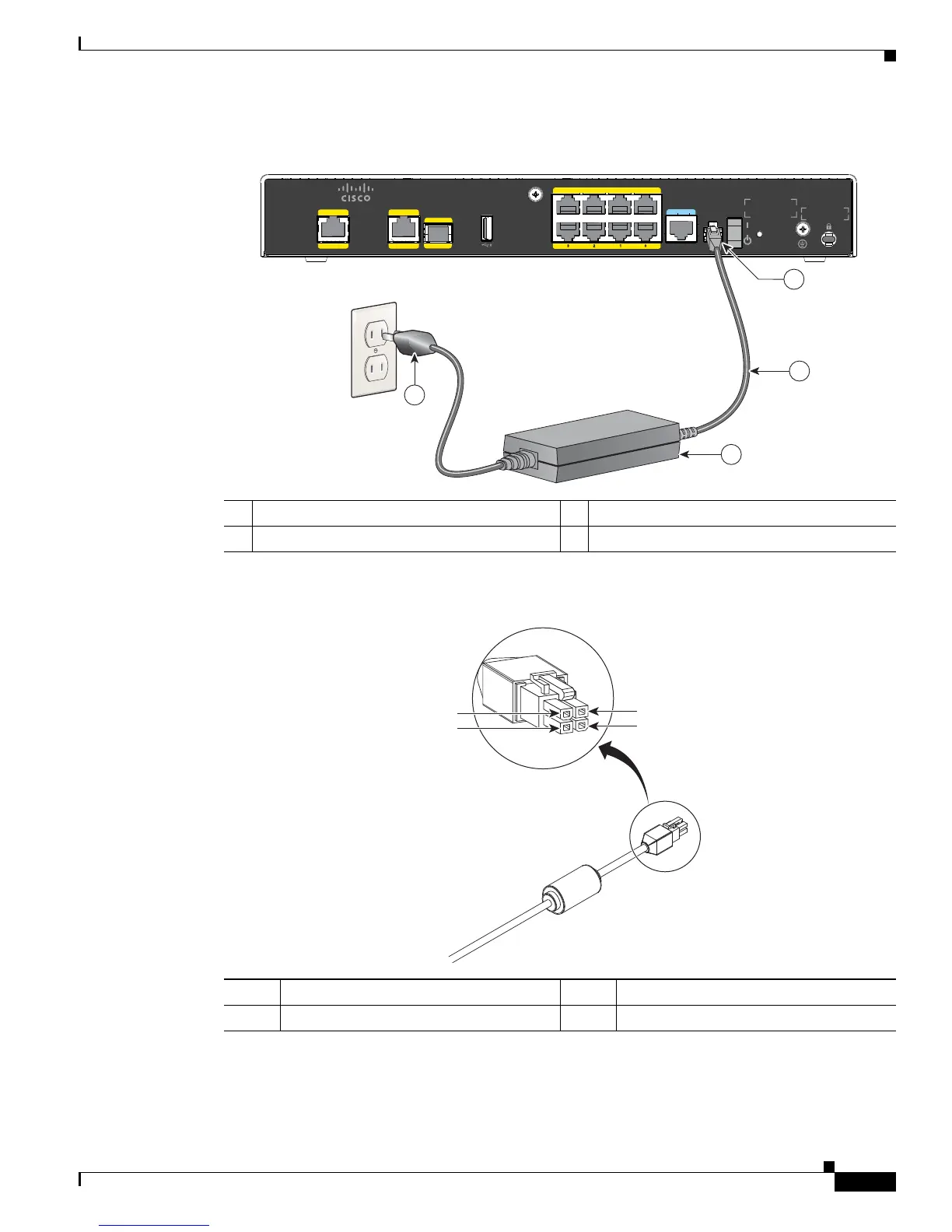

Figure 3-32 Connecting the AC Adapter for the Cisco 892FSP
Figure 3-33 Cisco 892FSP, 896VA, 897VA, and 898EA Power Adapter Connector Pin Assignment
7 6 GE LAN 5 4
9
GE WAN
8
GE WAN
SFP
8
12VD C 2.5A
CONSOLE
AUX
RESET
Cisco 892FSP
343746
1
2
4
3
1 12-VDC plug 3 Power adapter—12 VDC
2 Power Adapter Cord 4 AC Plug
284800
Pin 3
Pin 1
Pin 4
Pin 2
Pin 1 Ground Pin 3 +12 V
Pin 2 NC
1
Pin 4 NC
1. NC = No Connection.

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
