Cisco 8861 Deployment Guide

Cisco IP Phone 8861 and 8865 Wireless LAN Deployment Guide
201

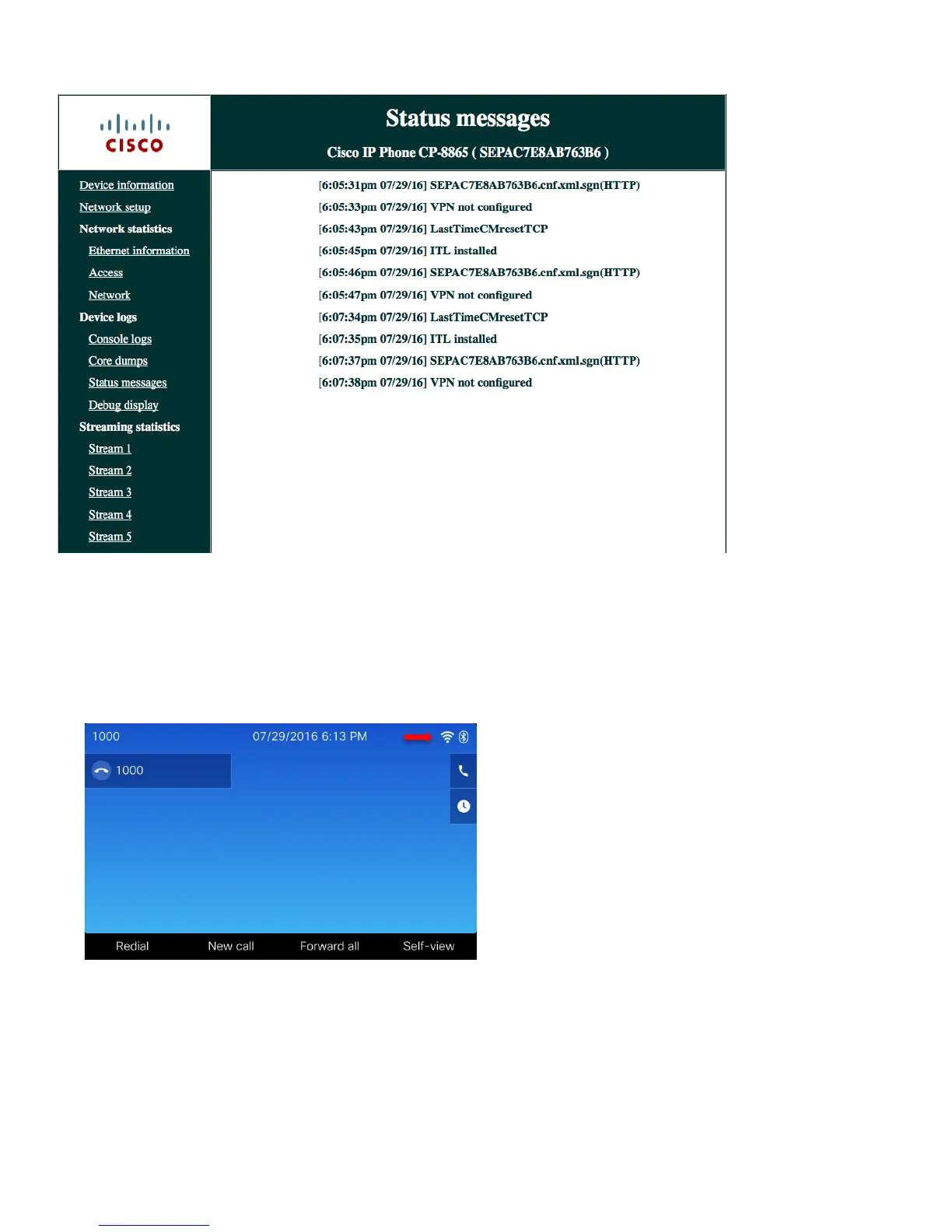

WLAN Signal Indicator
The WLAN signal indicator is displayed in the upper right hand corner of the main screen when the Cisco IP Phone 8861 and
8865 is connected to an access point.
Current Access Point
The Cisco IP Phone 8861 and 8865 only show the current access point (no neighbor list). To view current access point details
go to Applications > Admin settings > Status > Current access point.
The Cisco IP Phone 8861 and 8865 are constantly scanning regardless of current signal or call state to discover new access
points.

Cisco 8861 Specifications

General

Resolution	800 x 480 pixels
Audio	Wideband audio
Ethernet Ports	2 x 10/100/1000
Speakerphone	Full-duplex
Display	5-inch color display
Lines	5
PoE	Yes (802.3af)
Protocols	SIP, SDP, SRTP
Wi-Fi	802.11a/b/g/n/ac
Headset Jack	Yes
Codecs	G.711, G.722, G.729, iLBC
USB Port	2 x USB 2.0
USB Ports	2 x USB 2.0
Supported Languages	Multiple (English, French, Spanish, etc.)
