Cisco 8861 Deployment Guide

Cisco IP Phone 8861 and 8865 Wireless LAN Deployment Guide
95

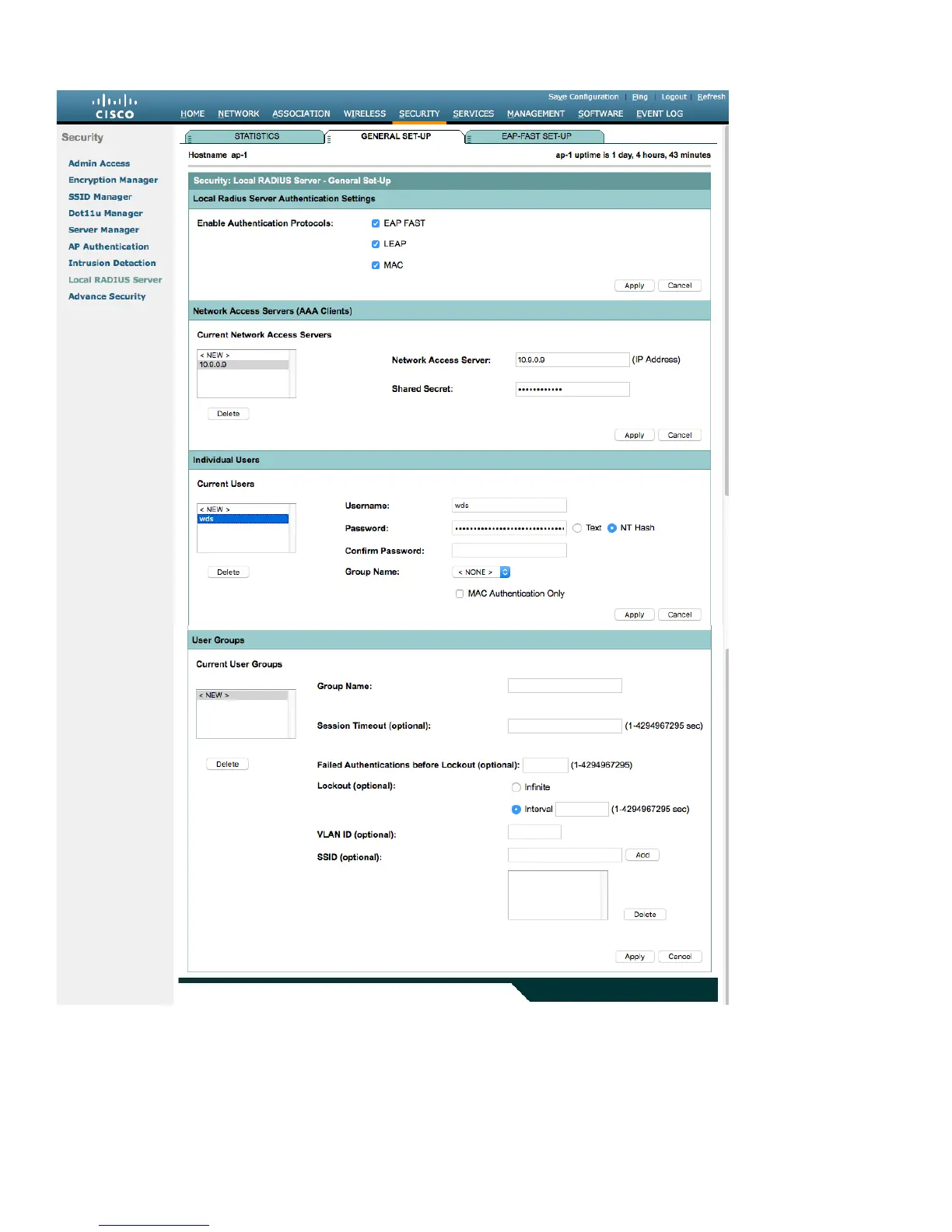

Once the desired access points have been configured successfully to enable Wireless Domain Services, then all access points
including those serving as WDS servers need to be configured to be able to authenticate to the WDS servers.
Enable Participate in SWAN Infrastructure.
If using a single WDS server, then can specify the IP address of the WDS server; otherwise enable Auto Discovery.
Enter the Username and Password to be used to authenticate to the WDS server.

Cisco 8861 Specifications

General

Resolution	800 x 480 pixels
Audio	Wideband audio
Ethernet Ports	2 x 10/100/1000
Speakerphone	Full-duplex
Display	5-inch color display
Lines	5
PoE	Yes (802.3af)
Protocols	SIP, SDP, SRTP
Wi-Fi	802.11a/b/g/n/ac
Headset Jack	Yes
Codecs	G.711, G.722, G.729, iLBC
USB Port	2 x USB 2.0
USB Ports	2 x USB 2.0
Supported Languages	Multiple (English, French, Spanish, etc.)
