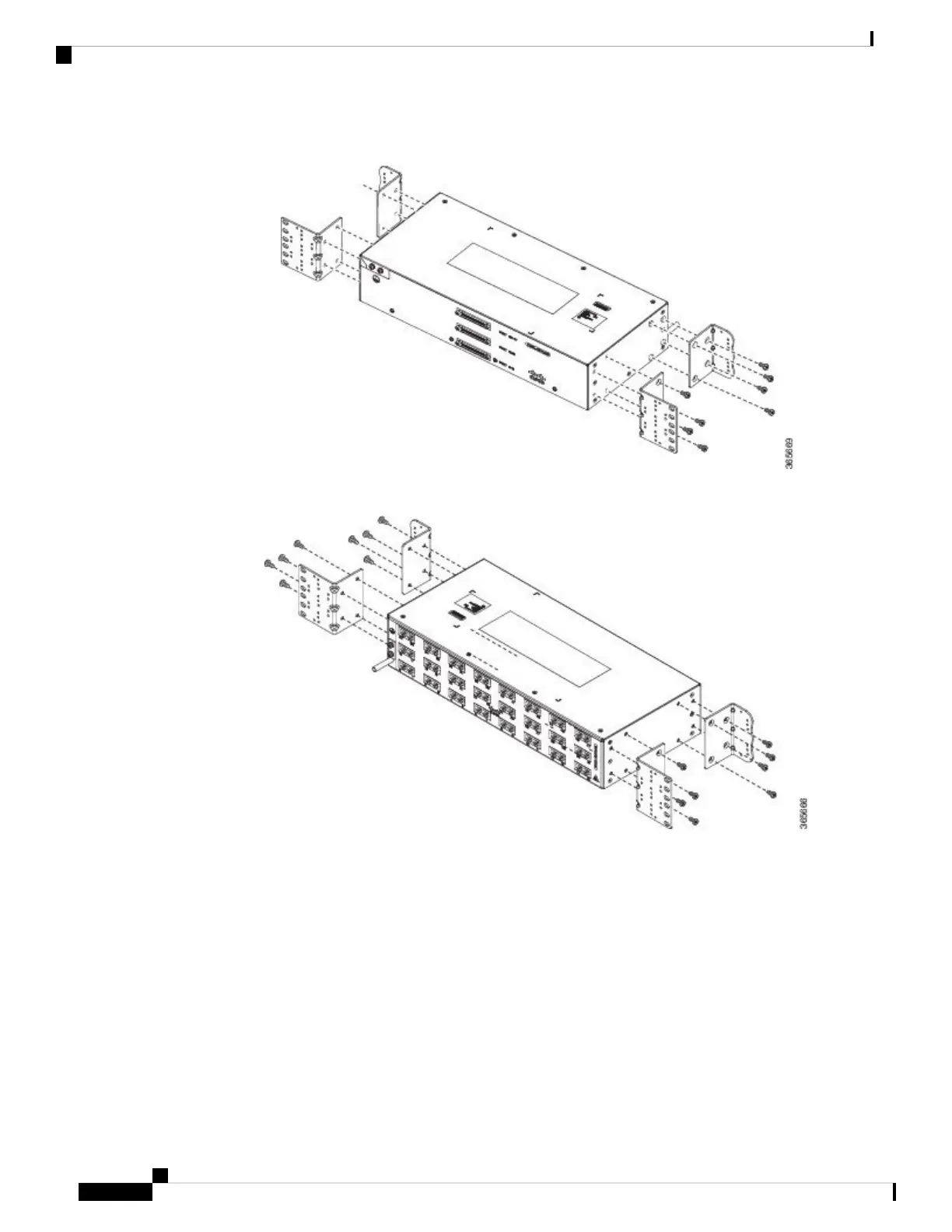

Figure 65: Patch Panel Front View with Brackets
Figure 66: Patch Panel Rear View with Brackets
Step 4 Position the cable management guides against the mounting brackets on the patch panel, see the figure below.
Cisco ASR 907 Router Hardware Installation Guide
114
Installing the Cisco ASR 907 Router
Installing Patch Panel
