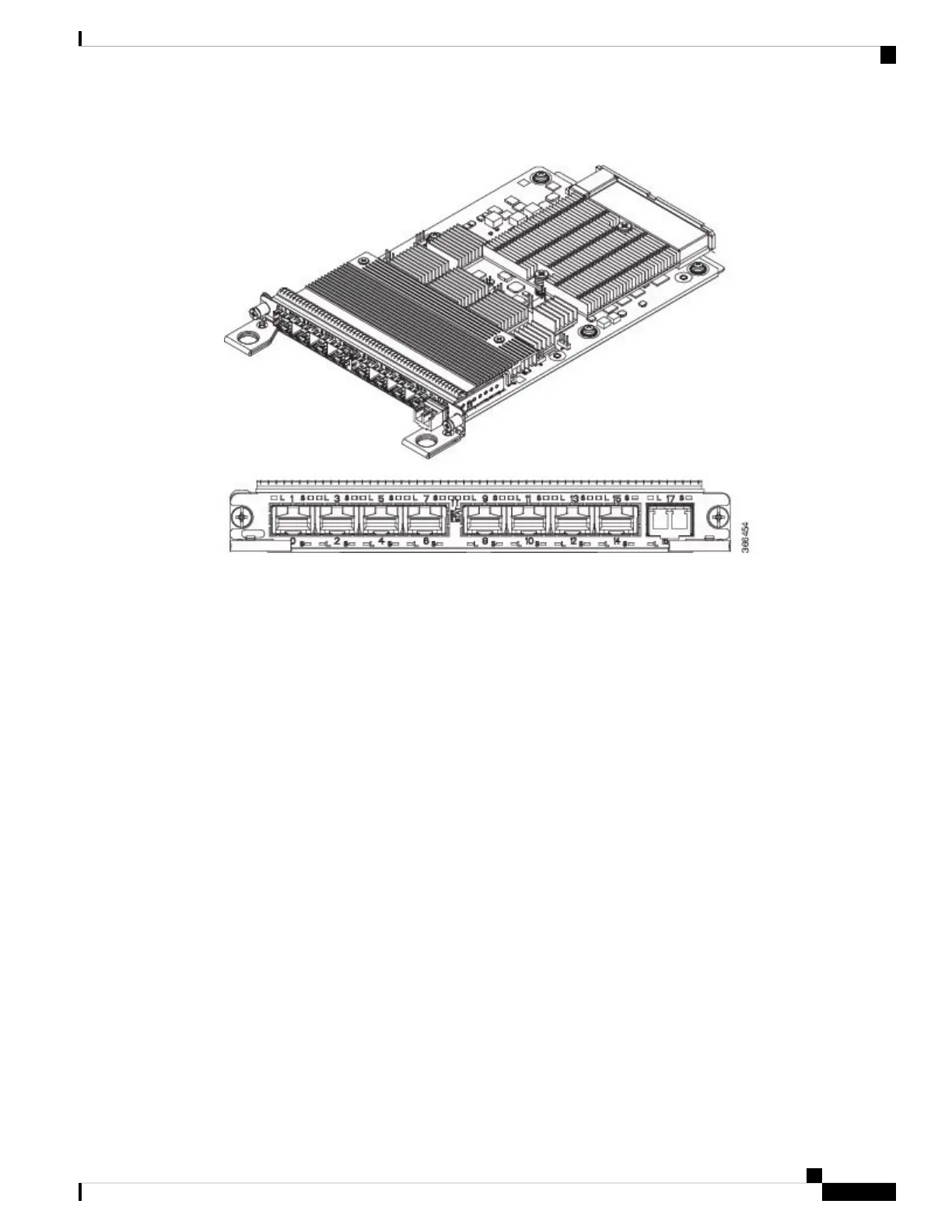

Figure 13: A900-IMA8CS1Z-M Gigabit Ethernet Interface Module
The following modes are supported for the Interface Module, based on slot capacity:
• 8 x 1GigE (SFP) Fully subscribed mode (FS)
• 8 x 1GigE (SFP) + 1 x 10GigE (SFP+) Fully subscribed mode (FS)
• 16 x 1GigE (C-SFP) + 1 x 10GigE (SFP+) Fully subscribed mode (FS)
• 16 or 18 x 1GigE (C-SFP) Oversubscribed mode (OS)
• 16 x 1GigE (C-SFP) + 1 x 10GigE (SFP+) Oversubscribed mode (OS)
• 8 or 9 x 1GigE (SFP) Fully subscribed mode (FS)
• 1 x 10GigE (SFP+) Fully subscribed mode (FS)
For information on supported SFP modules, see Cisco ASR 900 Series Aggregation Services Routers Data
Sheet.
For more information on port numbering, see Configuring 1-port 10 Gigabit Ethernet (1 X SFP+) / 1-port
Gigabit Ethernet (1 X SFP) / 2-port Gigabit Ethernet (1 X CSFP) and 16-port Gigabit Ethernet (8 X CSFP)
/ 8-port Gigabit Ethernet (8 X SFP) Interface Module chapter of the Cisco ASR 900 Router Series Configuration
Guide, Cisco IOS XE Everest 16.6.1.
16-Port T1/E1 Interface Module (A900-IMA16D)
The 16-port T1/E1 interface module provides connectivity for up to 16 T1/E1 ports through a 100-pin Amplimite
connector. The 16-port T1/E1 interface module requires the use of a patch panel to provide RJ48 (T1) or BNC
(E1) connectors. The figure below shows the interface module.
Cisco ASR 907 Router Hardware Installation Guide
21
Cisco ASR 907 Router Overview
16-Port T1/E1 Interface Module (A900-IMA16D)
