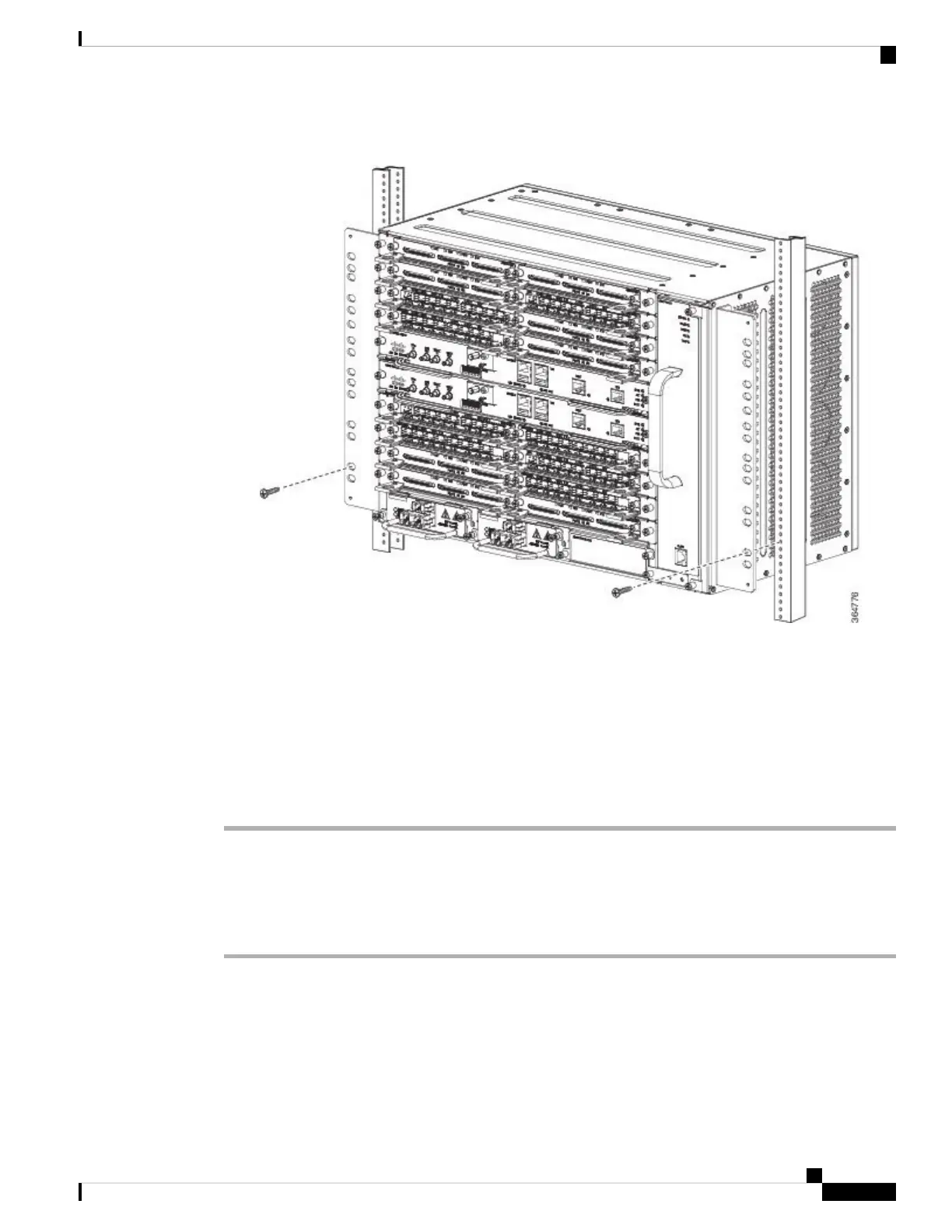

Figure 32: Installing the Chassis in a 300 mm ETSI Cabinet
The router can be mounted in an ETSI rack but the required bend radius for the cables and fibers
within the 300 mm ETSI specification cannot be maintained.
If you want to mount the router in ETSI cabinets, you need to have a custom-made cabinet front
door to meet the fiber bend radius requirement.
Note
Step 3 Install the 8 or 12 (4 or 6 per side) 12-24 x 3/4-inch or 10-32 x 3/4-inch screws through the holes in the bracket
and into the threaded holes in the equipment rack posts.
Step 4 Use a tape measure and level to verify that the chassis is installed straight and level.
Installing Plenum A907-F2B-AIR-U Assembly and Chassis in the Rack
Procedure
Step 1 Position the air baffle and the side plate to the plenum. Secure the air baffle using a maximum torque of 11.5
in.-lb (1.3 N-m). See figure below.
Cisco ASR 907 Router Hardware Installation Guide
59
Installing the Cisco ASR 907 Router
Installing Plenum A907-F2B-AIR-U Assembly and Chassis in the Rack
