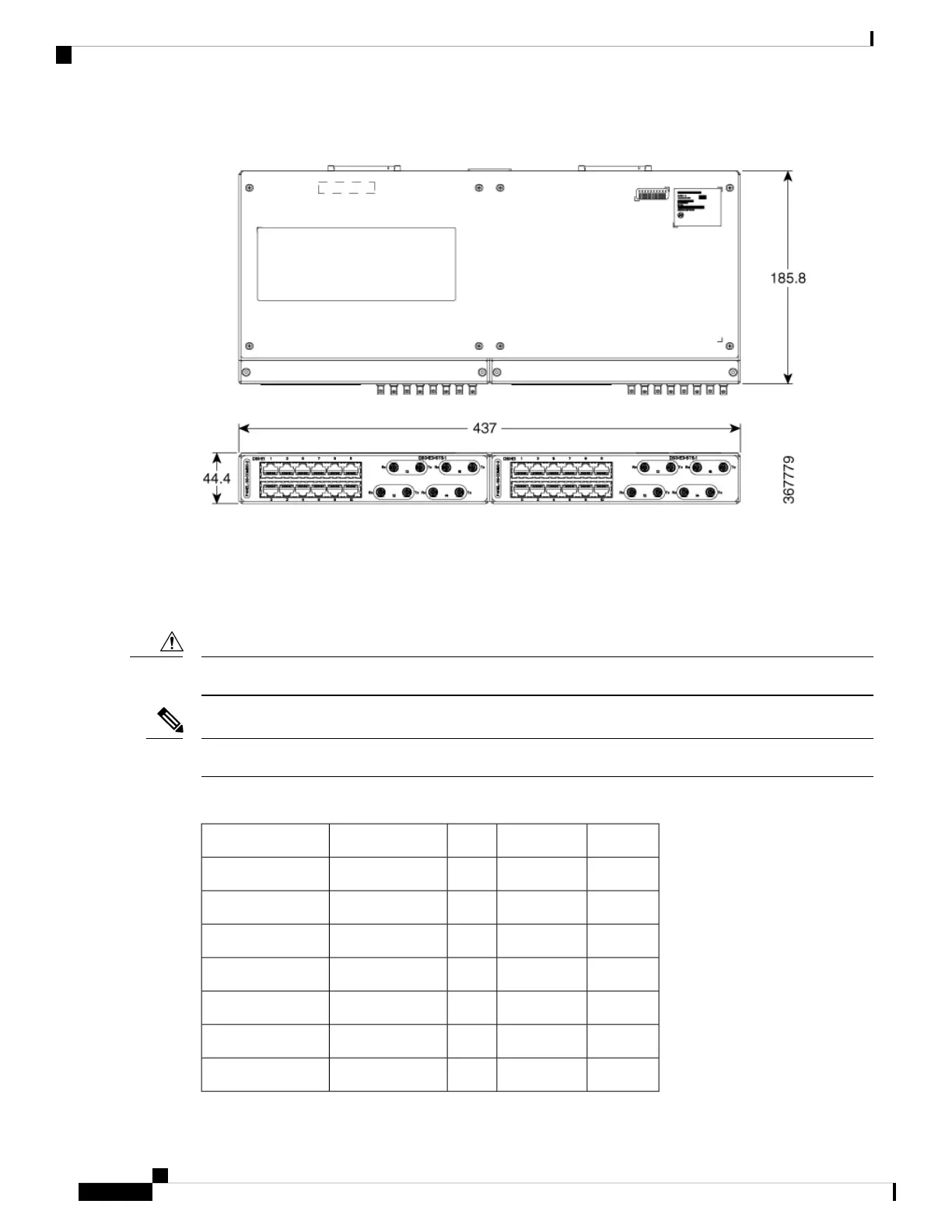

Figure 97: 3G Patch Panel Without Brackets - Dual
Connecting Serial Cables
The figure below shows the supported serial connectors, and the tables detail the supported cables with the
Cisco ASR 907 Router.
The Cisco ASR 907 Router currently only supports the EIA/TIA-232 connector.
Caution
The Cisco ASR 907 Router currently supports only the EIA/TIA-232 connector.
Note
Table 12: Interface Cables for 12-in-1 Connector
ConnectorMale/FemaleLengthProduct NumberCable Type
M34Male10 ft.CAB-SS-V35MTV.35 DTE
M34Female10 ft.CAB-SS-V35FCV.35 DCE
DB-25Male10 ft.CAB-SS-232MTEIA/TIA-232 DTE
DB-25Female10 ft.CAB-SS-232FCEIA/TIA-232 DCE
DB-37Male10 ft.CAB-SS-449MTEIA/TIA-449 DTE
DB-37Female10 ft.CAB-SS-449FCEIA/TIA-449 DCE
DB-15Male10 ft.CAB-SS-X21MTX.21 DTE
Cisco ASR 907 Router Hardware Installation Guide
144
Installing the Cisco ASR 907 Router
Connecting Serial Cables
